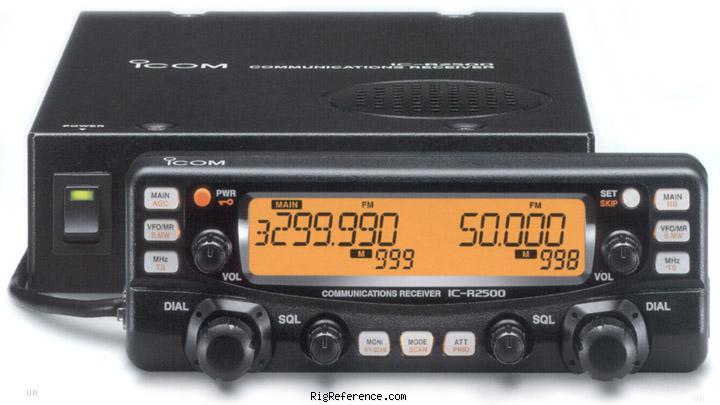

ICOM IC-R2500

Mobile HF/VHF/UHF/SHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

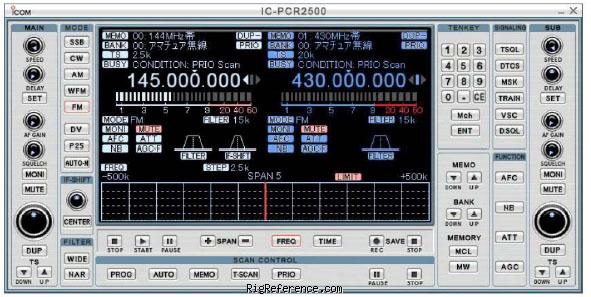

Windows software for computer control via USB connector Also sold without the control panel as IC-PCR2500 for computer control on

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.01-3300 MHz
Modulations: AM FM W-FM CW SSB
Sensitivity: AM (10 dB S/N)
0.495-1.8 MHz: 25 µV
1.8-50 MHz: 2.5 µV
50-700 MHz: 2 µV
700-1300 MHz: 2.5 µV
FM (12 dB SINAD)
1.8-50 MHz: 0.63 µV
50-700 MHz: 0.5 µV
700-1300 MHz: 0.63 µV
1300-2300 MHz: 5.6 µV
2300-3000 MHz: 18 µV
W-FM (12 dB SINAD)
50-700 MHz: 1.4 µV
700-1300 MHz: 1.8 µV
1300-2300 MHz: 18 µV
2300-3000 MHz: 56 µV
SSB/CW (10 dB S/N)
0.495-1.8 MHz: 5 µV
1.8-50 MHz: 0.5 µV
50-700 MHz: 0.4 µV
700-1300 MHz: 0.5 µV
Selectivity: AM/FM: 6 kHz (-6 dB), 15 kHz (-60 dB)
W-FM: 50 kHz (-6 dB), 230 kHz (-60 dB)
SSB/CW: 2.8 kHz (-6 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12V DC +/- 15%
Current drain RX: Max 1.5 A
TX: -

Physical

Dimensions (w×h×d): 146 × 41 × 206 mm (5.75 × 1.61 × 8.11 in) panel: 140×50×28 mm
Weight: 1.60 kg (3.5 lbs) Box + Panel
Form factor: Mobile
Manufactured: Between 2006 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS/DTCS. Dual watch and diversity reception. DSP (UT-106) and D-Star (UT-118) options
Accessories: -
RigReference ID: 3216
MPN: ICOM-IC-R002500
