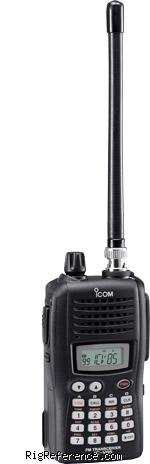

ICOM IC-V85

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz

Memories

107 channels in 1 bank(s)

Receiver

RX-range

136-174 MHz

Modulations

FM

Sensitivity

0.2 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>60 dB

Audio output

?

Transmitter

TX-range

144-146 MHz (Europe)
144-148 MHz (USA)

Modulations

FM

RF-output

High: 7 W, Medium: 4 W, Low: 0.5 W

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

11V DC (battery pack)

Current drain RX

30-250 mA

TX

Max 2.6 A

Physical

Dimensions (w×h×d)

56 × 110 × 35 mm (2.20 × 4.33 × 1.38 in)

Weight

310 gr (10.9 oz) with BP-227

Form factor

Handheld

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS & DTCS. Alpha tags WX alert (US version only).

Accessories

-

RigReference ID

3259

MPN

ICOM-IC-V000085

Manuals, diagrams and brochures

ICOM IC-V85 Instruction Manual PDF - 3.92 MB, submitted by Yudi Anto

ICOM IC-V85(E) Brochure PDF - 995.2 kB, submitted by Yudi Anto



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-V85. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-V85 in Good condition is around:

• USD 184
• EUR 149

Price History Chart

These estimates are based on the following prices:
