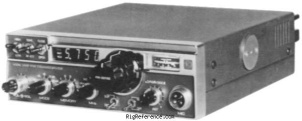

The KDK FM-2016A/E is a mobile VHF transceiver. It covers 144.000-148.995 MHz for reception and 144.000-145.995 MHz (European version) or 144.000-148.995 MHz (US version) for transmission. Frequency stability is better than ± 0.002%. Tuning steps are 10 kHz. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 16.9 MHz and 2nd: 455 kHz. RF output is selectable at High: 15 W or Low: 2 W. Audio output is 1.5 W @ 10% THD. It features 1 memory bank with 4 channels. Power requirements are 13.8V DC. Current drain in receive mode is 400-550 mA and 1.25-2.5 A in transmit mode. Dimensions are 60 × 180 × 215 mm. Weight is 2.5 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- Better than ± 0.002%
- Tuning steps
- 10 kHz
- Memories
- 4 channels in 1 bank(s) @ 4 channels/second
Receiver
- RX-range
- 144.000-148.995 MHz
- Modulations
- FM
- Sensitivity
- < 1 µV input for 30 dB S/N
- Selectivity
- 8 kHz @ -6 dB
16 kHz @ -70 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 16.9 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 1.5 W @ 10% THD
Transmitter
- TX-range
- 144.000-145.995 MHz (European version)
144.000-148.995 MHz (US version) - Modulations
- FM
- RF-output
- High: 15 W, Low: 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 400-550 mA
- TX
- 1.25-2.5 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 215 mm (7.09 × 2.36 × 8.46 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3317
- MPN
- KDK-FM-002016AE
Manuals, diagrams and brochures
- KDK FM-2016A/E Operator's Instructions PDF - 1.53 MB, submitted by RigReference
- KDK FM-2016A/E Mars mod JPEG - 2.39 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2016A/E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the KDK FM-2016A/E in Good condition is around:
- USD 50
These estimates are based on the following prices:
