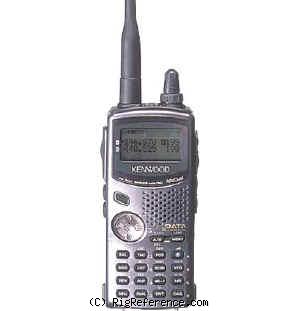

Enhanced version with dual speed TNC, and several other updates in TNC firmware.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
200 channels in 1 bank(s)

Receiver

RX-range
118-136 / 136-174 / 400-480 MHz
Modulations
AM   FM
Sensitivity
0.18 µV (12 dB SINAD)
(VHF sub-band: <0.28 µV for 12 dB SINAD)
Selectivity
12 kHz (-6 dB), 28 kHz (-40 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM
RF-output
High: 2.5-6 / 2.2-6 W (depending on voltage), Low: 0.5 / 0.5 W, El: 50 / 50 mW

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
6 or 9 V battery pack or 5.5-16V DC external
Current drain RX
25-115 mA (depending on configuration)
TX
300 mA-1.7 A

Physical

Dimensions (w×h×d)
54 × 1195 × 437 mm (2.13 × 47.05 × 17.20 in) with PB-39
Weight
380 gr (13.4 oz) with PB-39
Form factor
Handheld
Manufactured
Between 200x and 2007 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Alpha tags. Built-in 1200/9600bd TNC. APRS.
Accessories
-
RigReference ID
3380
MPN
KENWOOD-TH-D000007E(2.0)
