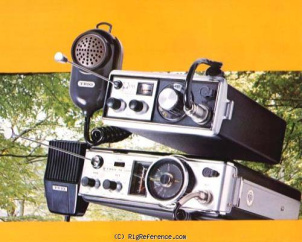

Kenwood TR-2200G
Portable VHF-FM Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Trio Portable-VHF-FM-Transceiver TR-2200G. 12 xtal-channels in the range from 144 to 146 MHz; built-in telescopic antenna; external power supply (10.4-15.2 V DC) possible; Pout: 1 W. Early model without "G"-suffix has only six channels.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne XTAL
- IF-frequencies
- 10.7 MHz
455 kHz - Image rejection
- ?
- Audio output
- 700 mW
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- 1 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10.4-15.2V DC
- Current drain RX
- 55 mA
- TX
- Max 420 mA
Physical
- Dimensions (w×h×d)
- 135 × 58 × 191 mm (5.31 × 2.28 × 7.52 in)
- Weight
- 1.80 kg (4.0 lbs) 10 × NiCd and mic included
- Form factor
- Portable
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3442
- MPN
- KENWOOD-TR-002200G
Manuals, diagrams and brochures
- Kenwood TR-2200 Instruction Manual PDF - Unknown size, submitted by RigReference
- TR-2200G PDF - 12.75 MB, submitted by Berend
- Upload relevant documents
Reviews
Be the first to review the Kenwood TR-2200G
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-2200G. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TR-2200G in Good condition is around:
- USD 66
- EUR 76
- DEM 470
These estimates are based on the following prices:
