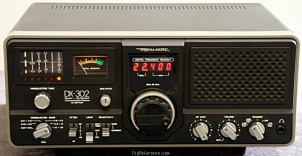

RadioShack / Realistic DX-302
Desktop Shortwave receiver
Add a review (+10 rep) Own this rig? Add it to your shack
Can hold eight "C" cells for portable operation. This model lacked adequate stability and image rejection. Note that, unlike the DX-300, the switch for Wide/Narrow on the DX-302 is for a true IF filter selection.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.01-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- 5 / 7 kHz
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains or 12V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 360 × 165 × 235 mm (14.17 × 6.50 × 9.25 in)
- Weight
- 6.35 kg (14.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1981 and 1982
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Head. Jack, S-Meter, Mute Line, ANL, Dial Lamp, Standby, Fine Tuning, Key Input Jack, Attenuator, Antenna Trimmer, Preselector, Dial Lamp Switch, Record Jack, AGC.
- Accessories
- -
- RigReference ID
- 3828
- MPN
- RADIOSHACK-/-REALISTIC-DX-000302
Manuals, diagrams and brochures
- Realistic DX-302 Owner's Manual PDF - 13.05 MB, submitted by Gerd
- Realistic DX-302 Service Manual PDF - 6.27 MB, submitted by Gerd
- Realistic DX-302 Schematic Diagram PDF - 4.56 MB, submitted by Gerd
