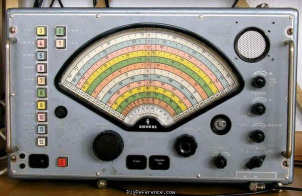

The Siemens 745 is often referred to as the rainbow receiver for obvious reasons.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
14-21 KHz / 0.085-30.3 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
19 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
60Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
550 × 350 × 380 mm (21.65 × 13.78 × 14.96 in)
Weight
35.00 kg (77.2 lbs)
Form factor
Base Station
Manufactured
Between 196x and 196x in Germany

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3962
MPN
SIEMENS-000745-E310

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Schiffsbetriebsempfänger, Spitzengerät 8 years ago by dh4bae

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Siemens 745 E310. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Siemens 745 E310 is around:

  • EUR 9.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 EUR 20.00 Used / Poor dh4bae
