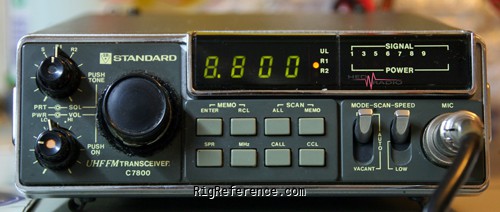

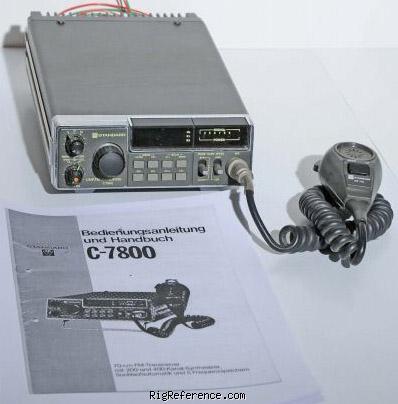

The STANDARD C-7800 is a single-band radio for UHF 430-440 MHz. It was built in the early 1980's. It is a solid and simple-to-use mobile-radio with ergonomic design including tone-call, repeater-shift, 10 W RF-power, band-scan and common VCO for RX and TX. This radio has no CTCSS-option, no DTMF-option and no 12,5 kHz-step. Helicals in the receiving-unit provide very good intermodulation-parameter. On many of those radios modding for 9k6-packet was done. This model has 5 memory channels and 1 direct frequency button (433.500 MHz).
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 25 / 50 kHz
- Memories
- 5 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- 0.15 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 21.4 MHz / 455 kHz
- Image rejection
- ?
- Audio output
- 2 W internal speaker, ext. speaker via jack
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- 1 / 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 600 mA
- TX
- 4.5 A max
Physical
- Dimensions (w×h×d)
- 168 × 58 × 240 mm (6.61 × 2.28 × 9.45 in)
- Weight
- 3.00 kg (6.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1980 and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- MP-716 microphone
- RigReference ID
- 4095
- MPN
- STANDARD-C-007800
