Standard Horizon C-7900

Mobile UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

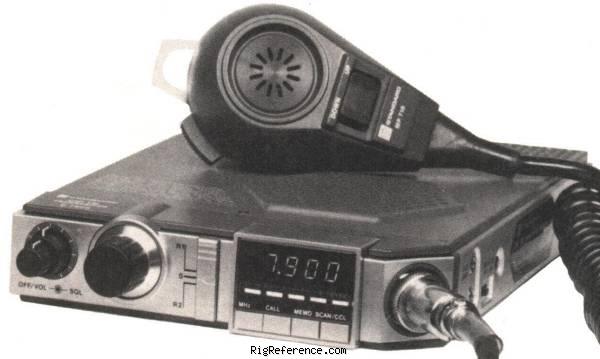

The Standard Horizon C-7900 is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. RF output power is selectable between High: 10 W and Low: ? W. The transceiver requires 12V DC power and draws 400 mA in receive mode and a maximum of 3.4 A in transmit mode. It weighs 1.1 kg and measures 31 × 138 × 178 mm.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: None

Receiver

RX-range: 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: FM
RF-output: High: 10 W, Low: ? W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: 400 mA
TX: Max 3.4 A

Physical

Dimensions (w×h×d): 138 × 31 × 178 mm (5.43 × 1.22 × 7.01 in)
Weight: 1.10 kg (2.4 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4096
MPN: STANDARD-HORIZON-C-007900

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the Standard Horizon C-7900. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the Standard Horizon C-7900

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard Horizon C-7900. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Standard Horizon C-7900 in Good condition is around:

GBP 45

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2015	GBP 45.00	Used / Good	G6UDX
