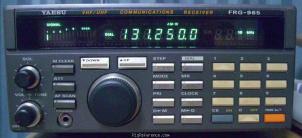

Yaesu FRG-965

General characteristics

HAM bands

2m  1.25m  70cm  4m

Frequency stability

?

Tuning steps

100 Hz, 1 / 5 / 10 / 12.5 / 25 kHz

Memories

100 channels in 1 bank(s)

Receiver

RX-range

60-905 MHz

Modulations

N-AM   W-AM   N-FM   W-FM   SSB   USB   LSB

Sensitivity

AM-N: 1 µV (10 dB S+N/N)
AM-W: 1.5 µV (10 dB S+N/N)
FM-N: 0.5 µV (12 dB SINAD)
FM-W: 1 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Double (FM-W) or triple (FM-N/AM/SSB) conversion superheterodyne

IF-frequencies

1st: 45.754 MHz
2nd: 10.7 MHz
3rd: 455 kHz

Image rejection

?

Audio output

1 W at 10% distortion / 8 ohm

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-15 V DC

Current drain RX

≤ 550 mA

TX

-

Physical

Dimensions (w×h×d)

180 × 80 × 220 mm (7.09 × 3.15 × 8.66 in)

Weight

2.20 kg (4.9 lbs)

Form factor

Unknown

Manufactured

Between 198x and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

TV tuner front end (!)

Accessories

-

RigReference ID

4224

MPN

YAESU-FRG-000965
