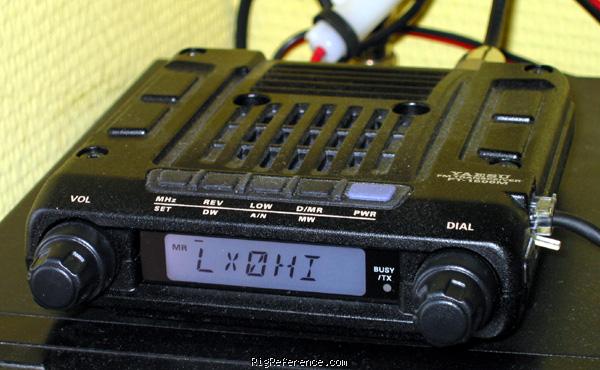

The Yaesu FT-1500M is a mobile VHF transceiver. It covers 137-174 MHz for receive and 144-148 MHz for transmit. Frequency stability is better than ±10 p.p.m. (-20°C to +60° C). Tuning steps are selectable from 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz. The receiver system is a double conversion superheterodyne with IF frequencies of 21.7 MHz & 450 kHz and image rejection ≥ 70 dB. RF output is selectable at 50 / 25 / 10 / 5 W. Audio output is 3.5 W @ 4 ohm for 10% THD. It features 1 memory bank with 130 channels. Power requirements are 13.8 V DC (±10%), negative ground. The FT-1500M is 9K6 packet ready. Dimensions are 35 × 127 × 126 mm and it weighs 990 gr. Current drain in receive is 300-600 mA and in transmit is 8 A (50 W) / 6 A (25 W) / 3 A (10 W) / 2 A (5 W).
General characteristics
- HAM bands
- 2m
- Frequency stability
- Better than ±10 p.p.m. (-20°C to +60° C)
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 130 channels in 1 bank(s)
Receiver
- RX-range
- 137-174 MHz
- Modulations
- FM
- Sensitivity
- Better than 0.2 µV
- Selectivity
- 12 kHz @ -6 dB / 28 kHz @ -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 21.7 MHz & 450 kHz
- Image rejection
- ≥ 70 dB
- Audio output
- 3.5 W @ 4 ohm for 10% THD
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 50 / 25 / 10 / 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC (±10%), negative ground
- Current drain RX
- 300-600 mA
- TX
- 8 A (50 W) / 6 A (25 W) / 3 A (10 W) / 2 A (5 W)
Physical
- Dimensions (w×h×d)
- 127 × 35 × 126 mm (5.00 × 1.38 × 4.96 in)
- Weight
- 990 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2000 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready
- Accessories
- -
- RigReference ID
- 4242
- MPN
- YAESU-FT-001500M
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| FT-1500 Long Lasting | 7 years ago by kd4qhg | |
| Very good packet radio | 9 years ago by kb1chu | |
| FT-1500M Good 2M | 15 years ago by kb3iuu |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-1500M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-1500M in Good condition is around:
- USD 96 ~ USD 119
These estimates are based on the following prices:
