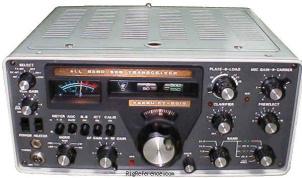

Yaesu FT-201S

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yaesu FT-201S is a 10-80 meters transceiver. Maximum RF-output is 100 W. Audio output is 3 W at 4 ohms. Features include noise blanker, VOX and +/- 5 kHz clarifier. Dimensions are 153 × 340 × 285 mm.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: AM CW SSB
Sensitivity: 0.3 µV S/N 10 dB
Selectivity: SSB, 2~4 kHz @ 6db
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 3 W at 4 ohms

Transmitter

TX-range: 10-80 m
Modulations: AM CW SSB
RF-output: 100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 340 × 153 × 285 mm (13.39 × 6.02 × 11.22 in)
Weight: 14.00 kg (30.9 lbs)
Form factor: Base Station
Manufactured: Between 1973 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Noise blanker
VOX
+/- 5 kHz clarifier
Accessories: -
RigReference ID: 4248
MPN: YAESU-FT-000201S

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-201S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Yaesu FT-201S is around:

USD 132 ~ USD 246

This estimate is based on similar equipment and may not reflect the exact value of this model.
