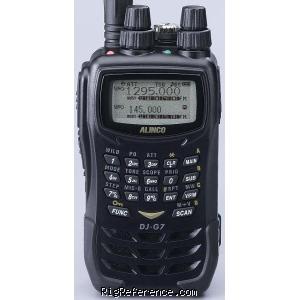

Alinco's first 23 cm rig. American version of the Alinco DJ-G7E.

General characteristics

HAM bands
2m  70cm  23cm
Frequency stability
± 2.5 ppm
Tuning steps
?
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
0.531-1300 MHz
Modulations
AM   FM   N-FM   W-FM
Sensitivity
?
Selectivity
AM/FM: 12 kHz (-6 dB), 35 kHz (-60 dB)
W-FM: 130 kHz (-6 dB), 300 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne (AM/FM) Single conversion superheterodyne (W-FM)
IF-frequencies
10.7 MHz (W-FM)
1st: 50.65 and 50.75 MHz (AM/FM)
2nd: 450 kHz (AM/FM)
Image rejection
60 dB
Audio output
?

Transmitter

TX-range
144-148 / 430-450 / 1260-1300 MHz
Modulations
FM   N-FM
RF-output
0.2 - 5 W depending in settings and voltage

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
7.4V DC (Li-Ion pack) or 6V DC (4*R6/AA) or 4.5-16V DC external
Current drain RX
200 mA
TX
2 A max

Physical

Dimensions (w×h×d)
61 × 115 × 30 mm (2.40 × 4.53 × 1.18 in)
Weight
296 gr (10.4 oz) incl. antenna
Form factor
Handheld
Manufactured
Between 2009 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Twin RX (full duplex operation support)
CTCSS / DCS
VOX
Ferrite bar for MW reception
Accessories
-
RigReference ID
4439
MPN
ALINCO-DJ-G000007T

Manuals, diagrams and brochures

Alinco DJ-G7 Instruction manual PDF - Unknown size, submitted by RigReference
Alinco DJ-G7 Service manual PDF - Unknown size, submitted by RigReference
