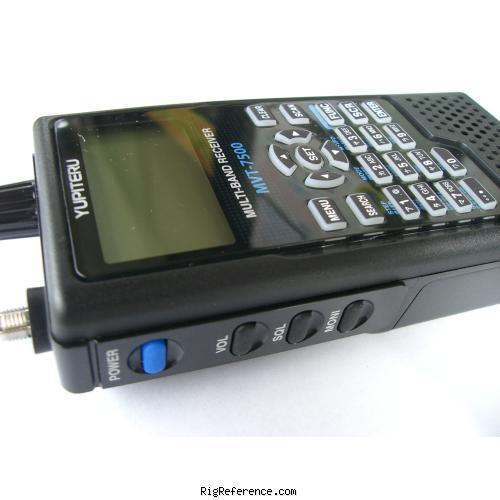

The MVT-7500 and its cousin the Yupiteru MVT-5500 are targeted at the Japanese market. Rumors suggest that coverage is not continuous. Some 'private' Japanese frequencies are blocked and it is uncertain if full coverage can be restored. Also, English manuals are not available at time of writing (Aug. 2009)

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
1 / 5 / 6.25 / 8 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 500 / 1000 kHz
Memories
2000 channels in 50 bank(s) @ 110 channels/second

Receiver

RX-range
0.1-1300 MHz
Modulations
AM   FM   W-FM
Sensitivity
FM (12dB SINAD)
30 ~ 470MHz -12dBμ
470 ~ 830MHz -9dBμ
830 ~ 1000MHz -4dBμ
1000 ~ 1300MHz 0dBμ
W-FM (12dB SINAD)
30 ~ 470MHz -3dBμ
470 ~ 830MHz 0dBμ
AM (10dB S / N)
0.53 ~ 2MHz -3dBμ
2 ~ 30MHz -10dBμ
30 ~ 470MHz -6dBμ
Selectivity
AM / FM
15kHz or more -6dB
Below 30kHz -40dB
W-FM
More than 180kHz -3dB
Below 470kHz -30dB

Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
90 mW

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
3×AA or 12V DC adaptor
Current drain RX
115 mW typical
TX
-

Physical

Dimensions (w×h×d)
60 × 120 × 30 mm (2.36 × 4.72 × 1.18 in)
Weight
230 gr (8.1 oz) incl. battery and belt clip
Form factor
Handheld
Manufactured
Between 2007 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS / DCS
Dual VFO
Micro-SD memory card slot (2GB max)
Accessories
-
RigReference ID
4494
MPN
YUPITERU-MVT-007500
