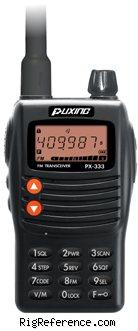

The Puxing PX-333 is a handheld VHF/UHF transceiver. It covers 136-174 MHz (VHF version), 400-470 MHz (UHF Lo version) and 465-520 MHz (UHF Hi version). Frequency stability is ±2.5 ppm with tuning steps of 5 / 10 / 6.25 / 12.5 and 25 kHz. RF output is Hi: 4 to 5W, Low: 0.5W. It features 1 memory bank with 128 channels. The PX-333 includes alpha tags, CTCSS/DCS, DTMF/2 tone/MSK ANI, 1750 Hz tone, a 10-digit keyboard and is PC programmable. Dimensions are 98 × 53 × 30 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ±2.5 ppm
- Tuning steps
- 5 / 10 / 6.25 / 12.5 and 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz (VHF version)
400-470 MHz (UHF Lo version)
465-520 MHz (UHF Hi version) - Modulations
- N-FM W-FM
- Sensitivity
- ＜0.2µV (12dB SINAD)
- Selectivity
- 25 or 12.5 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 MHz (VHF version)
400-470 MHz (UHF Lo version)
465-520 MHz (UHF Hi version) - Modulations
- N-FM W-FM
- RF-output
- Hi: 4 to 5W, Low: 0.5W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC or internal Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 53 × 98 × 30 mm (2.09 × 3.86 × 1.18 in) not including antenna
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 200x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags
CTCSS / DCS
DTMF/2 tone/MSK ANI
1750 Hz tone
10-digit keyboard
PC programmable
Keypad lock
Time-out Timer
Reverse frequency function (shift)
Scrambler - Accessories
- -
- RigReference ID
- 4501
- MPN
- PUXING-PX-000333
