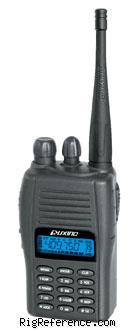

The Puxing PX-328 is a handheld VHF/UHF transceiver. It covers 136-174 MHz (VHF Lo), 240-260 MHz (VHF Hi), 400-470 MHz (UHF Lo) and 465-520 MHz (UHF Hi). The PX-328 has a frequency stability of ±2.5 ppm and tuning steps of 5 / 10 / 6.25 / 12.5 and 25 kHz. The RF output is 5W on VHF and 4W on UHF. It features 1 memory bank with 128 channels, alpha tags, CTCSS/DCS, DTMF encoder, PC programmability, time-out timer, keypad lock and reverse frequency function. The PX-328 weighs 220 gr including the battery. Dimensions are 100 × 55 × 32 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ±2.5 ppm
- Tuning steps
- 5 / 10 / 6.25 / 12.5 and 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 Mhz (VHF Lo version)
240-260 Mhz (VHF Hi version)
400-470 Mhz (UHF Lo version)
465-520 Mhz (UHF Hi version) - Modulations
- N-FM W-FM
- Sensitivity
- ＜0.2µV (12dB SINAD)
- Selectivity
- 25 or 12.5 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥60dB
- Audio output
- ?
Transmitter
- TX-range
- 136-174 Mhz (VHF Lo version)
240-260 Mhz (VHF Hi version)
400-470 Mhz (UHF Lo version)
465-520 Mhz (UHF Hi version) - Modulations
- N-FM W-FM
- RF-output
- VHF: 5W, UHF: 4W max
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC or internal Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 55 × 100 × 32 mm (2.17 × 3.94 × 1.26 in) not including antenna
- Weight
- 220 gr (7.8 oz) including battery
- Form factor
- Handheld
- Manufactured
- Between 200x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags
CTCSS / DCS
DTMF encoder
PC programmable
Time-out Timer
Keypad lock
Reverse Frequency Function (Shift) - Accessories
- -
- RigReference ID
- 4508
- MPN
- PUXING-PX-000328
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Puxing PX-328. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Puxing PX-328 in Good condition is around:
- USD 51
