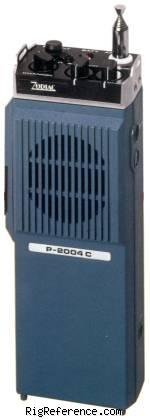

Zodiac P-2004C

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

Channelized

Memories

4 channels in 1 bank(s)

Receiver

RX-range

26.965-27.255 MHz

Modulations

AM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

455 kHz

Image rejection

?

Audio output

Internal speaker

Transmitter

TX-range

26.965-27.255 MHz

Modulations

AM

RF-output

1 W

Connections

Antenna

Built-in telescopic

Impedance

50Ω

Other

Headphones

Electrical

Power requirements

12 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

75 × 200 × 57 mm (2.95 × 7.87 × 2.24 in)

Weight

750 gr (1.7 lbs)

Form factor

Handheld

Manufactured

Between 1983 and 1987

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

4652

MPN

ZODIAC-P-002004C
