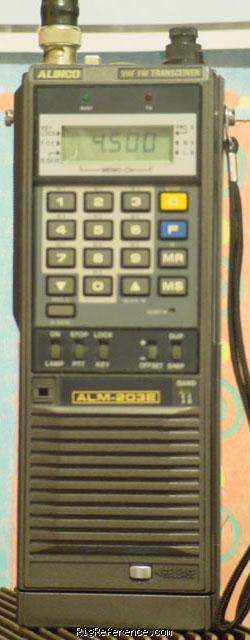

Alinco ALM-203T

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 kHz

Memories

10 channels in 1 bank(s)

Receiver

RX-range

144-160 MHz

Modulations

FM

Sensitivity

< 0.3 µV for 20 dB noise quieting
< 0.2 µV for 12 dB SINAD

Selectivity

± 6 kHz (-6 dB)
± 11 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz

Image rejection

60 dB

Audio output

350 mw into 8 ohms

Transmitter

TX-range

144-147.995 MHz

Modulations

FM

RF-output

High: 5 W, Low: 100 mW

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

9.6 V DC

Current drain RX

35-150 mA

TX

220 mA - 1.2 A

Physical

Dimensions (w×h×d)

69 × 200 × 37 mm (2.72 × 7.87 × 1.46 in) with dry cells battery case

Weight

500 gr (1.1 lbs)

Form factor

Handheld

Manufactured

Between 198x and 198x

Other features

Usage

Amateur / Ham radio operators

Features + options

DTMF encoder
Duplex operation, ± 6 kHz offset

Accessories

-

RigReference ID

5396

MPN

ALINCO-ALM-000203T

Manuals, diagrams and brochures

Alinco ALM-203E Schematic Diagram PDF - Unknown size, submitted by RigReference

Alinco ALM-203T/E Instruction Manual PDF - Unknown size, submitted by RigReference
