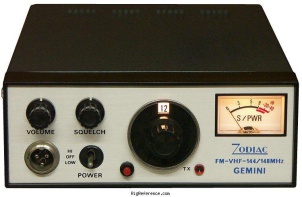

The Zodiac Gemini is a Mobile VHF Transceiver. It covers 144-148 MHz for both receive and transmit. The RF output is selectable between 1 / 15 W. It features 1 memory bank with 12 channels. Power requirements are 13.8 V DC. Current drain is 150 mA in receive and 3.5 A max in transmit. Dimensions are 60 × 250 × 225 mm. It has a built-in 1750 Hz tone burst.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.5 µV @ 12 dB SINAD
- Selectivity
- ± 12 kHz @ -50 dB
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 1 / 15 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 150 mA
- TX
- 3.5 A max
Physical
- Dimensions (w×h×d)
- 250 × 60 × 225 mm (9.84 × 2.36 × 8.86 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1973 and 197x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in 1750 Hz tone burst
- Accessories
- -
- RigReference ID
- 5588
- MPN
- ZODIAC-GEMINI
