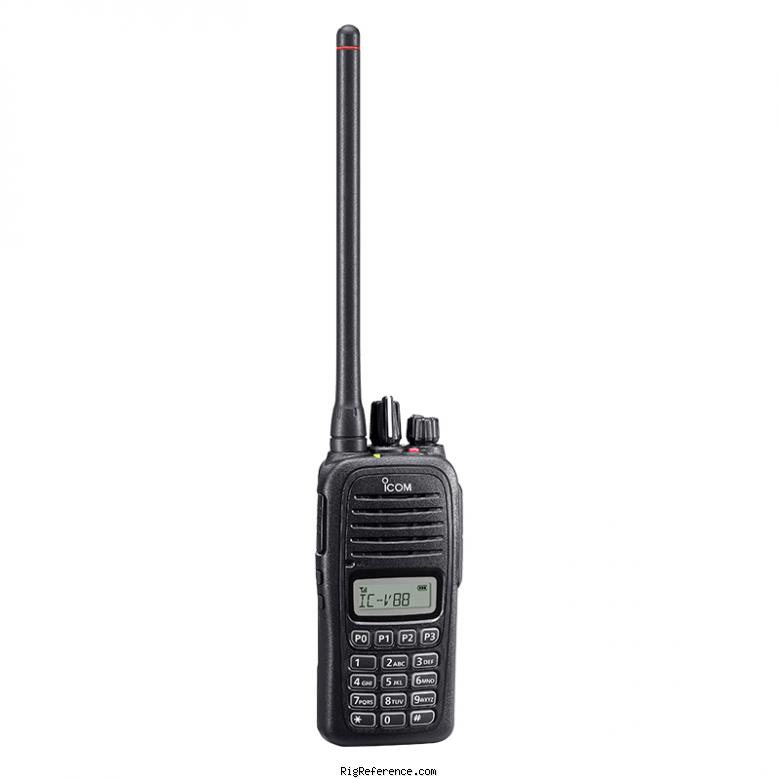

The ICOM IC-V88 is a handheld VHF transceiver covering 136-174 MHz in receive and 144-146 MHz (Europe) or 144-148 MHz (USA) in transmit. It has a frequency stability of ±2.5 p.p.m. and selectable tuning steps of 5, 10, 12.5, 15, 20, 25, or 50 kHz. The IC-V88 offers an RF output power of 5.5W, 2.0W, or 0.5W and features 1 memory bank with 128 channels. It has an 800mW internal audio output and includes CTCSS/DTCS, DTMF, Inversion Voice Scrambler, and IP67 waterproofing. The transceiver weighs 230 gr (with BP-278) and measures 112 × 52 × 22 mm (with BP-278).
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM
- Sensitivity
- 0.25 μV typ. (at 12dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >60 dB
- Audio output
- 800mW (internal)
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- 5.5 / 2.0 / 0.5W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.5V DC
- Current drain RX
- 77-300 mA
- TX
- 1.5 A
Physical
- Dimensions (w×h×d)
- 52 × 112 × 22 mm (2.05 × 4.41 × 0.87 in) with BP-278
- Weight
- 230 gr (8.1 oz) with BP-278
- Form factor
- Handheld
- Manufactured
- Between 2014 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67 waterproofing
MIL-STD810
10.5 hours of operation
8 chars alphanumeric display
CTCSS / DTCS
DTMF
Inversion Voice Scrambler - Accessories
- -
- RigReference ID
- 6064
- MPN
- ICOM-IC-V000088
Manuals, diagrams and brochures
- ICOM IC-V88 brochure PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-V88. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-V88 is around:
- USD 219 ~ USD 406
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
