Heathkit SB-240

Desktop Shortwave Linear Amplifier

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

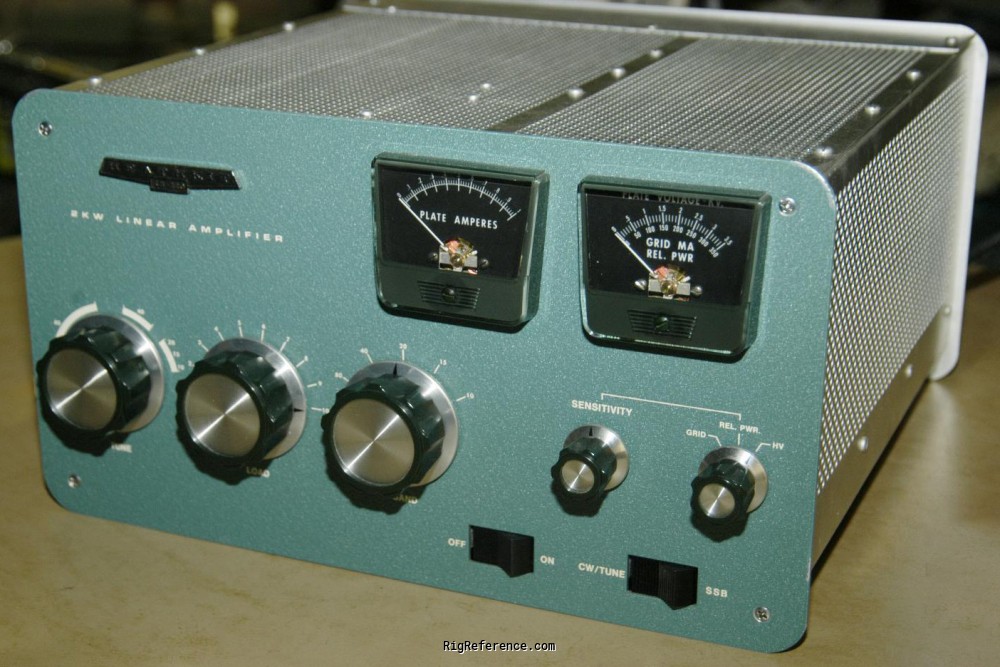

The Heathkit SB-240 is a desktop shortwave linear amplifier. It supports 10-80m frequency range and has a maximum RF output of 2 kW. The power requirements are Mains. Weight: 17 kg.

General characteristics

HAM bands: 80m 40m 30m (WARC) 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Transmitter

TX-range: 10-80m
Modulations: CW SSB
RF-output: 2 kW

Connections

Antenna: SO-239
Impedance: 50/75Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: 17.00 kg (37.5 lbs)
Form factor: Base Station
Manufactured: Between 197x and 197x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6206
MPN: HEATHKIT-SB-000240

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the Heathkit SB-240. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the Heathkit SB-240

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SB-240. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Linear Amplifier equipment, the estimated value of the Heathkit SB-240 is around:

USD 496 ~ USD 920

This estimate is based on similar equipment and may not reflect the exact value of this model.
