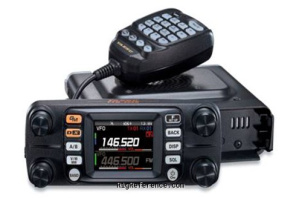

50 W dual-band transceiver with color display, built-in Bluetooth and GPS, extended RX-coverage including air band, VHF and UHF.

USA version: FTM-300DR
European version: FTM-300DE

Available in April 2020

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
108-1000 MHz (Cellular blocked in the US)
Modulations
AM   FM   N-FM   DV
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
3 W Internal speaker

Transmitter

TX-range
144-148 / 430-450 MHz (FTM-300DR)
144-146 / 430-440 MHz (FTM-300DE)
Modulations
FM   N-FM   DV
RF-output
5 / 25 / 50 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
139 × 53 × 18 mm (5.47 × 2.09 × 0.71 in) control head
Weight
1.10 kg (2.4 lbs) total unit
Form factor
Mobile
Manufactured
Between 2020 and 202x in Korea

Other features

Usage
Amateur / Ham radio operators
Features + options
Fusion System
CTCSS/PL
2" QVGA color TFT
Built-in Bluetooth and GPS
Wires-X Twin RX (V+V, U+U, V+U, U+V) with simultaneous DV RX on both receivers
1200/9600bd APRS modem
Voice recording
Band scope
AMS
Micro-SD slot
Detachable control head.
Accessories
MH-85A11U Hand microphone with built-in camera
MLS-100 External speaker
SSM-85D DTMF Microphone
RigReference ID
6518
MPN
YAESU-FTM-000300DE

Manuals, diagrams and brochures

Yaesu FTM-300DR Manual PDF - 3.33 MB, submitted by Peter Dawson

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-300DR/E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTM-300DR/E is around:

  • EUR 390.00
  • USD 447.00 ~ USD 431.00
  • AUD 691.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 AUD 695.00 New / Mint Peter Dawson
2021 USD 439.00 New / Mint Erich
2020 EUR 409.00 New / Mint RigReference
2020 USD 469.00 New / Mint RigReference
