Xiegu XPA125B

100 W solid state amplifier

Specs Manuals (0) Reviews (0) Prices (0) Compare

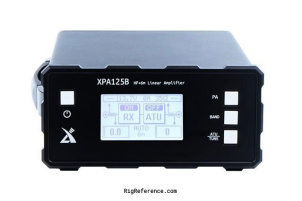

The Xiegu XPA125B is a 100 W solid-state linear amplifier. It operates on the frequency range of 10-160 meters + WARC / 6 m and requires 12-14.5 V DC power. The current drain during transmit is 30 A max. Dimensions are 150 × 260 × 100 mm.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Transmitter

TX-range: 10-160 m + WARC / 6 m
Modulations: All mode
RF-output: 100 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12-14.5 V DC
Current drain RX: ?
TX: 30 A max

Physical

Dimensions (w×h×d): 260 × 150 × 100 mm (10.24 × 5.91 × 3.94 in)
Weight: 2.66 kg (5.9 lbs)
Form factor: Portable
Manufactured: Between 2022 and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6621
MPN: XIEGU-XPA000125B

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu XPA125B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Linear Amplifier equipment, the estimated value of the Xiegu XPA125B is around:

USD 496 ~ USD 920

This estimate is based on similar equipment and may not reflect the exact value of this model.
