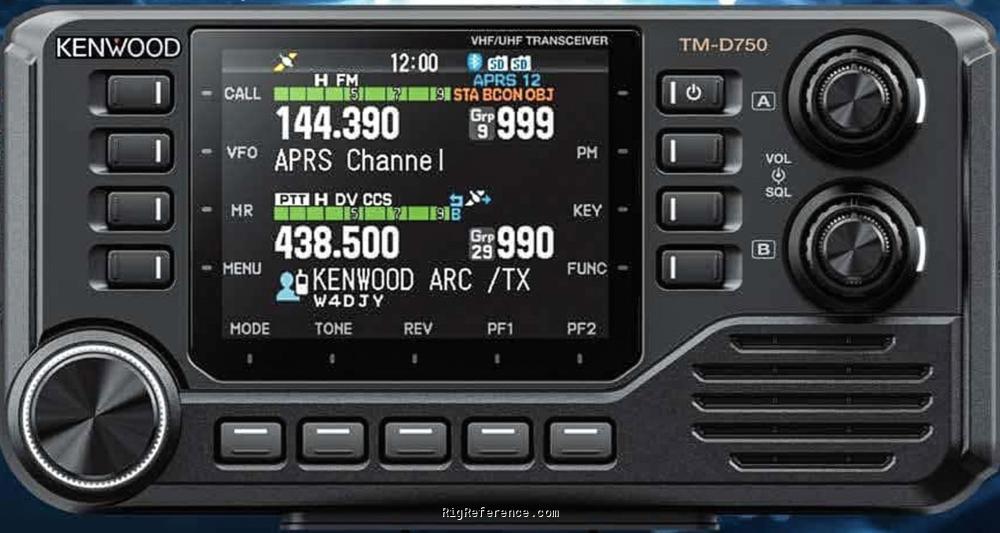

Kenwood TM-D750A

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

?

Tuning steps

5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz

Memories

1000 channels in 1 bank(s)

Receiver

RX-range

118-524 / 800-1300 MHz

Modulations

AM   FM   N-FM   D-STAR

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 222-225 / 430-450 MHz

Modulations

FM   N-FM   D-STAR

RF-output

50 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

183 × 93 × mm (7.20 × 3.66 × 0.00 in) Front panel

Weight

?

Form factor

Mobile

Manufactured

Between 2025 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Alpha tags
Non volatile EEPROM storage
Built-in 1200/9600 bd
KISS TNC with APRS
3.45" color TFT
WLAN, Bluetooth. USB-C
Extensive voice guidance
Micro-SD card slot
D-Star reflector terminal mode
GPS
Twin RX

Accessories

-

RigReference ID

6633

MPN

KENWOOD-TM-D000750A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-D750A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
