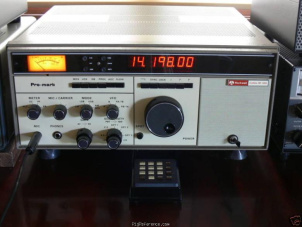

Collins KWM-380

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

?

Tuning steps

10 Hz

Memories

?

Receiver

RX-range

0.5-30 MHz

Modulations

AM   CW   USB   LSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

Greater than 60 dB

Audio output

?

Transmitter

TX-range

160-10 m

Modulations

CW   USB   LSB

RF-output

Max 100 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-15V DC or mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

394 × 190 × 457 mm (15.51 × 7.48 × 17.99 in)

Weight

27.20 kg (60.0 lbs)

Form factor

Base Station

Manufactured

Between 198x and 198x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2530

MPN

COLLINS-KWM-000380

Manuals, diagrams and brochures

Collins KWM-380 , HF 380 Service Bulletin PDF - 1.80 MB, submitted by Berend



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins KWM-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Collins KWM-380 in Good condition is around:

• USD 2,145 ~ USD 2,610

Price History Chart

These estimates are based on the following prices:
