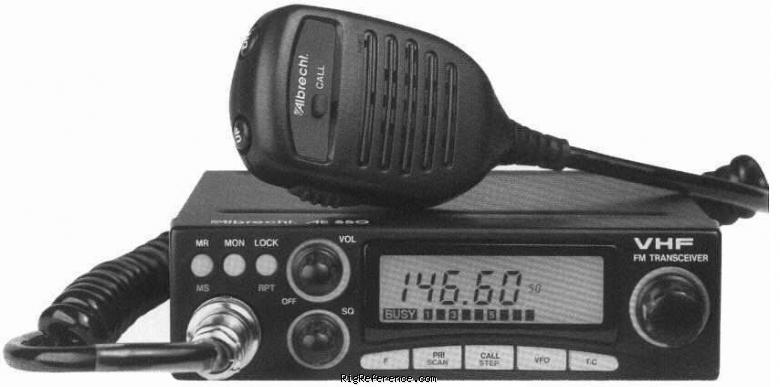

This model is also sold as the Albrecht AE550. See the Albrecht for the instruction manual.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 / 10 / 12.5 / 20 / 25 kHz
Memories
10 channels in 1 bank(s)

Receiver

RX-range
141-149.995 MHz
Modulations
FM
Sensitivity
0.22 µV (12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
21.40 MHz
455 kHz
Image rejection
?
Audio output
2.5 W into 8 ohm @ 10% THD

Transmitter

TX-range
144-146 MHz
Modulations
FM
RF-output
High: 25 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
6 A max

Physical

Dimensions (w×h×d)
140 × 40 × 124 mm (5.51 × 1.57 × 4.88 in)
Weight
700 gr (1.5 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2569
MPN
DRAGON-SY-000550
