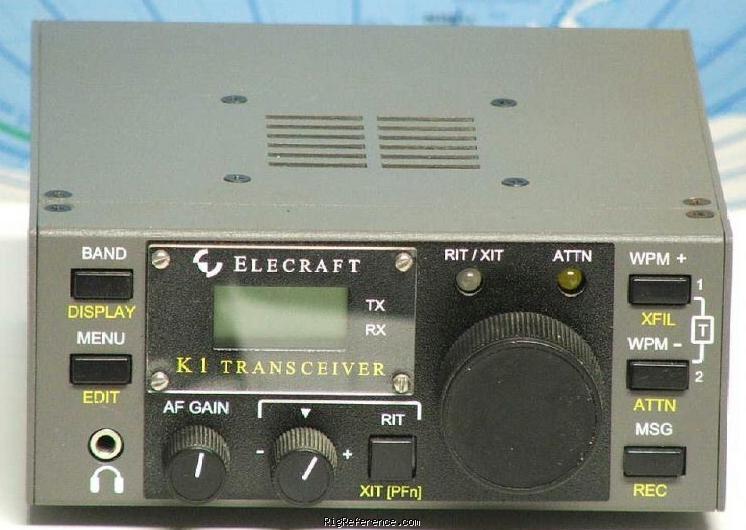

The Elecraft K1 is a transceiver covering 3.5 / 7.0 / 10.1 / 14.0 / 18.05 / 21.0 MHz (2 or 4 selected bands per module) with an RF output of QRP (0-5 W). It features a 4-pole variable-bandwidth crystal filter and provides 1 watt (peak) audio output into an 8-ohm load. The K1 requires 8.5 to 15 V DC and has a current drain of 55 mA in receive mode and 700-900 mA in transmit mode. Dimensions are 60 × 130 × 180 mm.
General characteristics
- HAM bands
- 80m 40m 30m (WARC) 20m 17m (WARC) 15m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 3.5 / 7.0 / 10.1 / 14.0 / 18.05 / 21.0 MHz
(2 or 4 selected bands per module) - Modulations
- CW
- Sensitivity
- 0.2 µV for 10 dB (S+N)/N
- Selectivity
- Approx. 200-800 Hz
- Filters
- 4-pole variable-bandwidth crystal filter
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 watt (peak) into 8-ohm load
Transmitter
- TX-range
- 3.5 / 7.0 / 10.1 / 14.0 / 18.05 / 21.0 MHz
(2 or 4 selected bands per module) - Modulations
- CW
- RF-output
- QRP (0-5 W)
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 8.5 to 15 V DC
- Current drain RX
- 55 mA
- TX
- 700-900 mA
Physical
- Dimensions (w×h×d)
- 130 × 60 × 180 mm (5.12 × 2.36 × 7.09 in)
- Weight
- 600 gr (1.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 200x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2648
- MPN
- ELECRAFT-K000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Elecraft K1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Elecraft K1 in Good condition is around:
- EUR 300
- USD 261 ~ USD 503
These estimates are based on the following prices:
