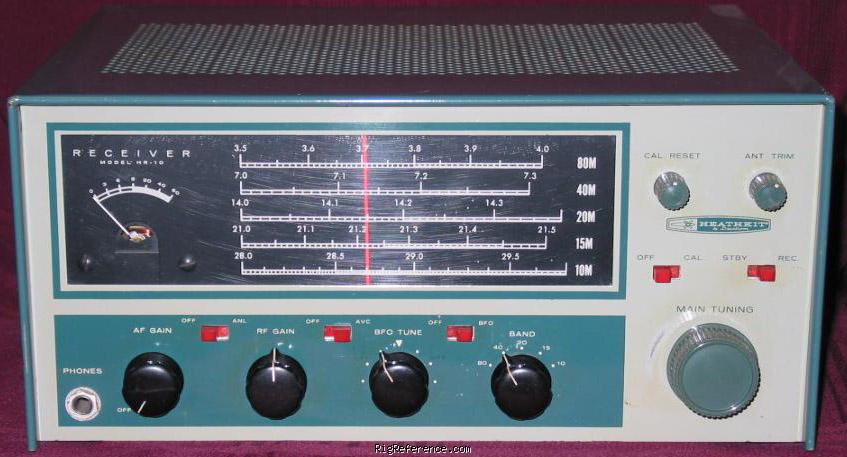

The Heathkit HR-10 is designed for amateur bands between 80 and 10 meters. The large scale allows for accurate tuning and the tuning dial is illuminated.
Matches the Heathkit DX-60 transmitter.

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
10-80 m
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
Lattice-type crystal filter for high selectivity
Receiver system
7-tubes superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
9.50 kg (21.0 lbs)
Form factor
Base Station
Manufactured
Between 196x and 19xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
S-meter
Antenna trimmer
Accessories
-
RigReference ID
2916
MPN
HEATHKIT-HR-000010
