General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
Continuous / 1 preset channel
Memories
1 channels in 1 bank(s)

Receiver

RX-range
6 m
Modulations
AM   FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 2 MHz
2nd: 455 kHz
Image rejection
?
Audio output
?

Transmitter

TX-range
6 m
Modulations
AM   FM
RF-output
1 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Unknown
Manufactured
Between 1969 and 197x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2959
MPN
ICOM-FDAM-000003

Manuals, diagrams and brochures

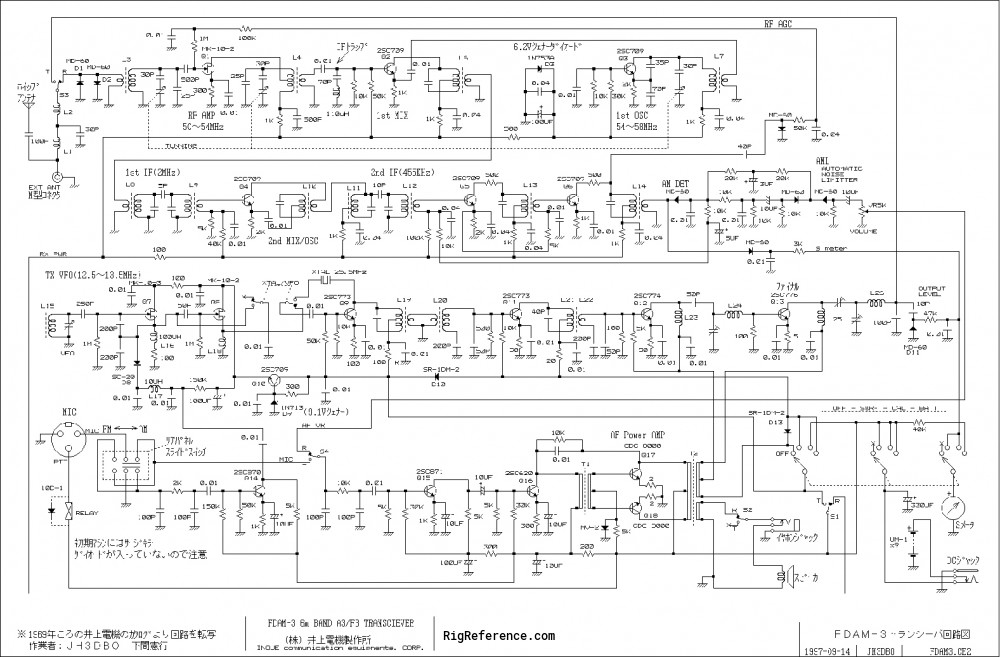

Icom FDAM-3 Schematic JPEG - 446.9 kB, submitted by RigReference
