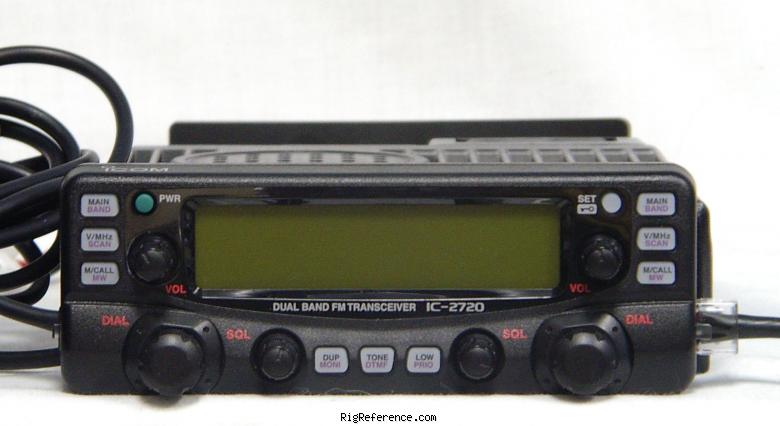

The ICOM IC-2720H is a 2 meter / 70 cm dual bander. It features a separate front panel, wideband receive, 3 power settings, built-in CTCSS decode/encode, selectable amber/green display, PC compatibility and 212 memory channels. Power output is 50/15/5 watts on 2 meters and 35/15/5 watts on 440 MHz. The 2720H supports cross-band repeat. It is 9600 BPS packet ready too (6 pin DIN). The 2720H also includes a built-in duplexer, full function backlit HM-133 remote DTMF hand mic, MB-84 remote controller mounting bracket, separation cable, radio mobile mounting bracket, OPC-1132 9.8 foot DC power cable and spare fuses.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 212 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: ?/? W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 12 A max
Physical
- Dimensions (w×h×d)
- 140 × 50 × 270 mm (5.51 × 1.97 × 10.63 in) main unit + controller
- Weight
- 1.32 kg (2.9 lbs) main unit + controller
- Form factor
- Mobile
- Manufactured
- Between 2002 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS & DTCS. 9k6 packet ready. Twin RX
- Accessories
- -
- RigReference ID
- 3030
- MPN
- ICOM-IC-002720H
Manuals, diagrams and brochures
- ICOM IC-2720H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
- ICOM IC-2720H Instruction Manual (Errata).pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2720H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-2720H is around:
- USD 168 ~ USD 311
This estimate is based on similar equipment and may not reflect the exact value of this model.
