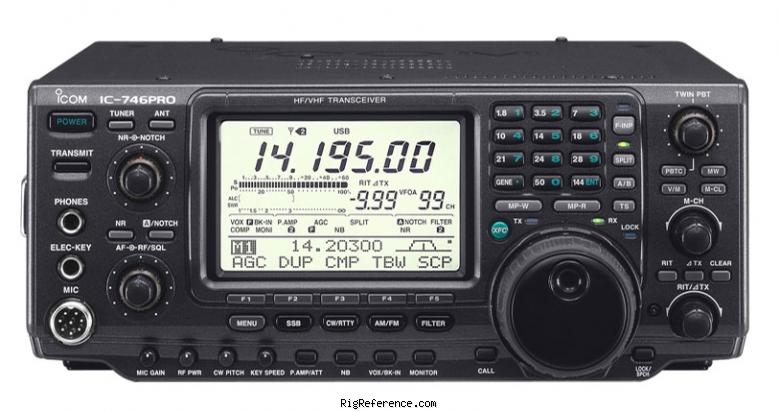

The ICOM IC-746 Pro is a desktop HF/VHF transceiver. It covers 0.03-60 / 108-174 MHz (receive) and 10-160 m + WARC / 50-54 / 144-148 MHz (transmit). RF output is 5-100 W (AM: 5-40 W). It features a 32 bit DSP and CI-V Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m). The IC-746 Pro requires 13.8V DC, with a current drain of 2.2-3 A (receive) and max 23 A (transmit). Dimensions are 120 × 287 × 316 mm and it weighs 9 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 2m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-60 / 108-174 MHz
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 / 144-148 MHz
- Modulations
- AM FM CW SSB RTTY
- RF-output
- 5-100 W (AM: 5-40 W)
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 2.2-3 A
- TX
- Max 23 A
Physical
- Dimensions (w×h×d)
- 287 × 120 × 316 mm (11.30 × 4.72 × 12.44 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2001 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 32 bit DSP, CI-V Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m)
- Accessories
- -
- RigReference ID
- 3155
- MPN
- ICOM-IC-000746-PRO
