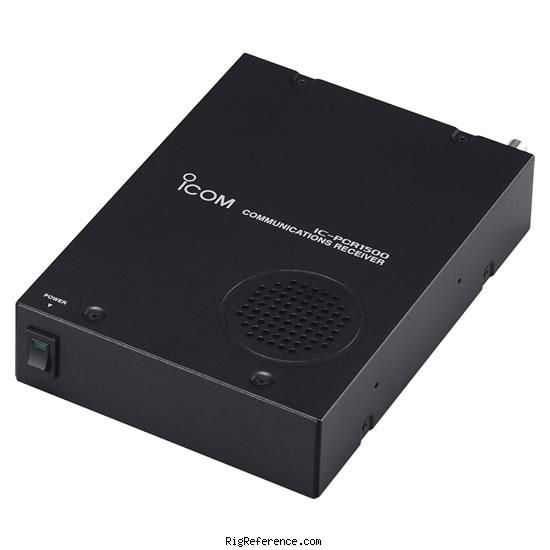

Windows software for computer control via USB connector Also sold with a separate control panel as the ICOM IC-R1500.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m  2000m  13cm
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.01-3300 MHz
Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
12V DC +/- 15%
Current drain RX
Max 1.25 A
TX
-

Physical

Dimensions (w×h×d)
146 × 41 × 206 mm (5.75 × 1.61 × 8.11 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Headless
Manufactured
Between 2005 and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS/DTCS
DSP option (UT-106)
Accessories
-
RigReference ID
3206
MPN
ICOM-IC-PCR001500

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-PCR1500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year Historic price Condition Submitted by
