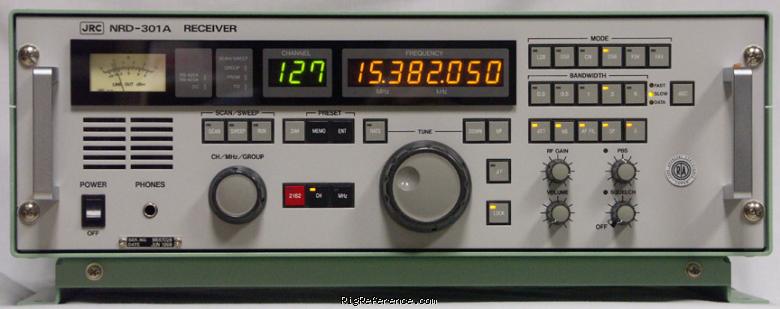

What kind of receiver is designed for professional use, 24 hours per day? What kind of receiver is designed for intuitive, non-fatiguing monitoring by shipboard radio operators? Such a receiver is the Japan Radio Company's NRD-301A. The display is large. The knobs are large. Each mode has a separate button. Each bandwidth has a separate button. There are separate knobs for RF Gain, Volume, Pass Band Shift and Squelch. This receiver is a dream to operate and is arguably the most impressive looking radio we have ever offered. And performance, as you would expect, is second to none. Many user defined functions are available to tailor the receivers operation to your requirements.

Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, DSB (AM), FSK (RTTY) and FAX modes. Supplied bandwidths include: 6, 3 and 0.5 kHz (0.3 and 1 kHz optional). The built in 300 channel memory stores: frequency, mode, bandwidth, AGC and ATT data. Scan and sweep are supported. Other refinements include: AF Filter, NB, Lock, Dimmer, Self-Test, AGC selection and front-firing built-in speaker. A built in self-test function is also featured. A spare parts kit including fuse, relay hex socket screw keys is included. The AC input supply voltage is user selectable from the back panel.

The NRD-301A is designed for mounting in a standard 19 inch commercial rack

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m  2000m
Frequency stability
± 20 Hz after 1 min below 13 MHz. ± 50 Hz after 1 min > 13 MHz.
Tuning steps
1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 100 kHz
Memories
?

Receiver

RX-range
0.09-30 MHz
Modulations
AM   CW   USB   LSB   DSB   RTTY   FAX
Sensitivity
2µV SSB 1.8-30 MHz (10 dB S+N/N)
Selectivity
6.0 kHz
3.0 kHz
0.5 kHz
1.0 kHz [Optional]
0.3 kHz [Optional]
Filters
?
Receiver system
Up Conversion Dual Superheterodyne
IF-frequencies
?
Image rejection
> 70 dB
Audio output
1 Watts at 8 Ohms

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
24 V DC or mains
Current drain RX
36 W
TX
-

Physical

Dimensions (w×h×d)
480 × 150 × 290 mm (18.90 × 5.91 × 11.42 in)
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3293
MPN
JRC-NRD-000301A

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-301A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the JRC NRD-301A is around:

  • USD 154.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2002 USD 3700.00 Used / Mint dxace1
