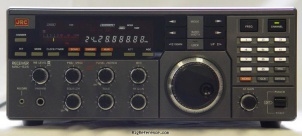

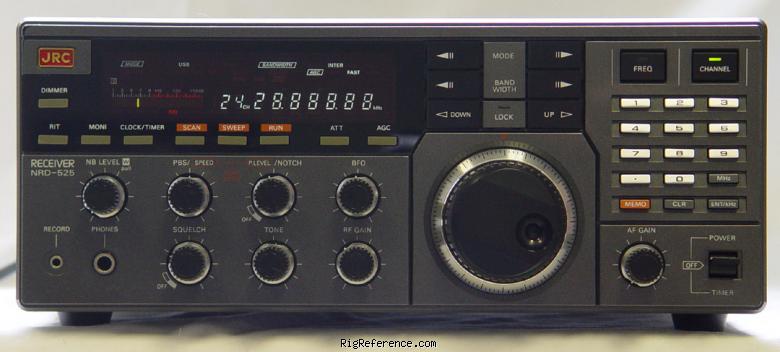

The Japan Radio Company NRD-525 follows in the proud tradition of the NRD-505 and NRD-515. This multimode receiver tunes from 90 kHz to 34 MHz with a 10 Hz digital display. Four independent filter positions are available with a 4 kHz and 2 kHz filter standard. Select stations via manual tuning, up-down tuning, scanning, keypad entry or 200 channel memories. Advanced refinements include: Passband Tuning, Notch Filter, Scan/Sweep, Clock Timer, effective Noise Blanker, Dimmer and Tone Control. The rear panel has a selectable antenna input and timer relay contacts. The '525' employs modular construction as found on many JRC marine receivers such as the NRD-301.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ±3 ppm
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 0.09-34 MHz (114-174 / 423-456 MHz option)
- Modulations
- All mode
- Sensitivity
- 0.5 µV 1.6-34 MHz SSB/CW S+N/N=10dB
- Selectivity
- AUX (12 kHz with no filter)
WIDE > 4 kHz
INTER > 2 kHz
NARR (option)
[FM] > 12 kHz - Filters
- 2 / 4 kHz
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 70.45399-70.453 MHz
2nd: 455 kHz - Image rejection
- > 70 dB (1.6 - 30 MHz)
- Audio output
- 0.5 W @ 4 Ohms
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50 / 600Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 340 × 132 × 287 mm (13.39 × 5.20 × 11.30 in)
- Weight
- 8.60 kg (19.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1986 and 1992 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CW-filter options
Clock Timer
Dimmer
Noise Blanker
Notch Filter
Passband Tuning
RS232
RTTY demodulator
Scan/Sweep
Tone Control - Accessories
- -
- RigReference ID
- 3297
- MPN
- JRC-NRD-000525
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-525. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the JRC NRD-525 in Good condition is around:
- EUR 298 ~ EUR 556
These estimates are based on the following prices:
