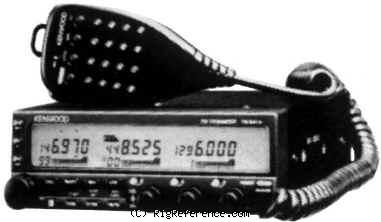

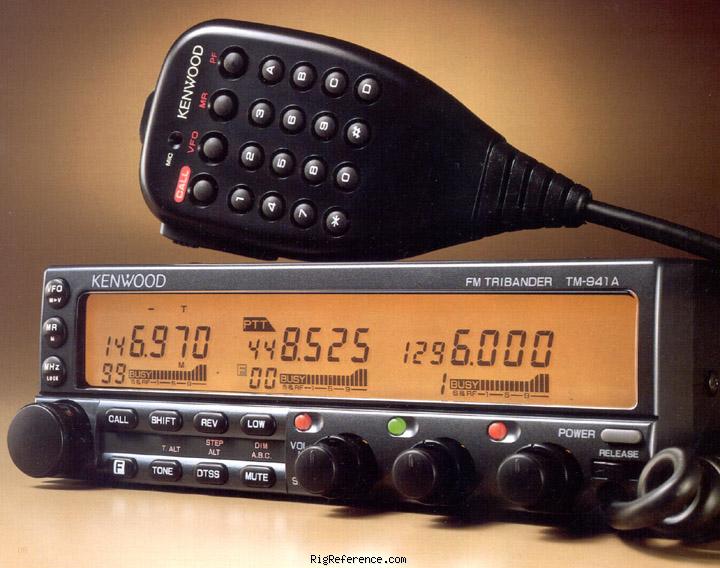

Kenwood TM-941A

General characteristics

HAM bands

2m  70cm  23cm

Frequency stability

?

Tuning steps

?

Memories

303 channels in 3 bank(s)

Receiver

RX-range

118-174 / 438-450 / 1240-1300 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 440-450 / 1240-1300 MHz

Modulations

FM

RF-output

High: 50/35/10 W, Low: 5/5/1 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Mobile

Manufactured

Between 1991 and 199x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS
Triple RX

Accessories

-

RigReference ID

3424

MPN

KENWOOD-TM-000941A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-941A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TM-941A is around:

• USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
