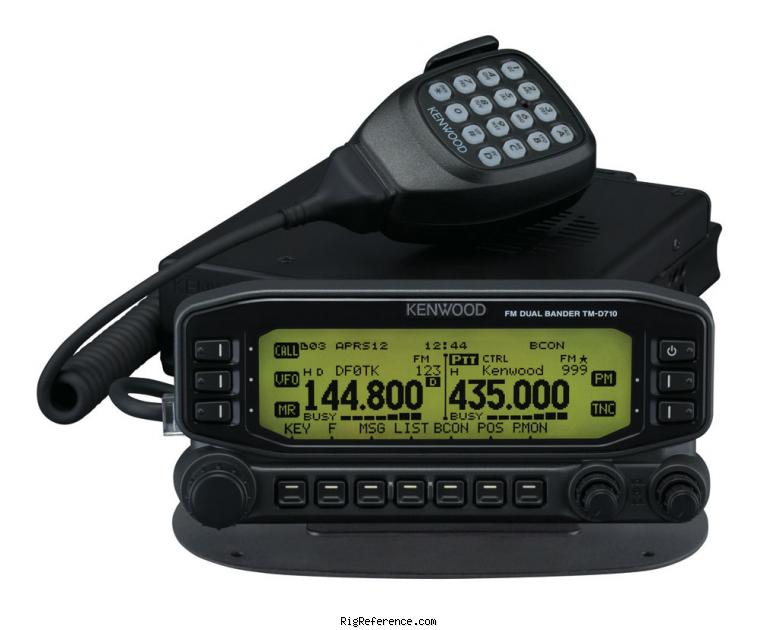

The advanced Kenwood TM-D710A follows in the proud tradition of the popular TM-D700A. You will have a full 50/10/5 watts on both VHF and UHF. Key features include: internal clock for APRS®(Automatic Packet/position Reporting System) time and date stamp, APRS sort function, APRS filter function, APRS QSY function, APRS decay algorithm, APRS, proportional pathing, APRS voice alert, EchoLink ready, NOAA weather, 1000 memories and a sound card interface is built in. Versatile message with 100 messages (up to 67 characters each) is supported. There is also a NMEA 0183 GPS I/O port. And it can employed as part of Kenwood’s Skycommand System II+ when used with the TS-2000 series. The screen may be set for orange or green. There is a clock/date function.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-524 / 800-1300 MHz
- Modulations
- AM FM
- Sensitivity
- 145/434 MHz: <0.16 µV (12 dB SINAD)
- Selectivity
- -6 dB: More than 11 kHz
-40 dB: Less than 30 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 45.05 MHz (Band A), 49.95 MHz (Band B)
2nd: 455 KHz (Band A), 450 KHz (Band B) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- 50 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- 1.2 A max
- TX
- 13 A max
Physical
- Dimensions (w×h×d)
- 140 × 43 × 142 mm (5.51 × 1.69 × 5.59 in) Panel: 155×138×70 mm
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in TNC 1K2/9K6, APRS. Twin RX
- Accessories
- -
- RigReference ID
- 3429
- MPN
- KENWOOD-TM-D000710E
