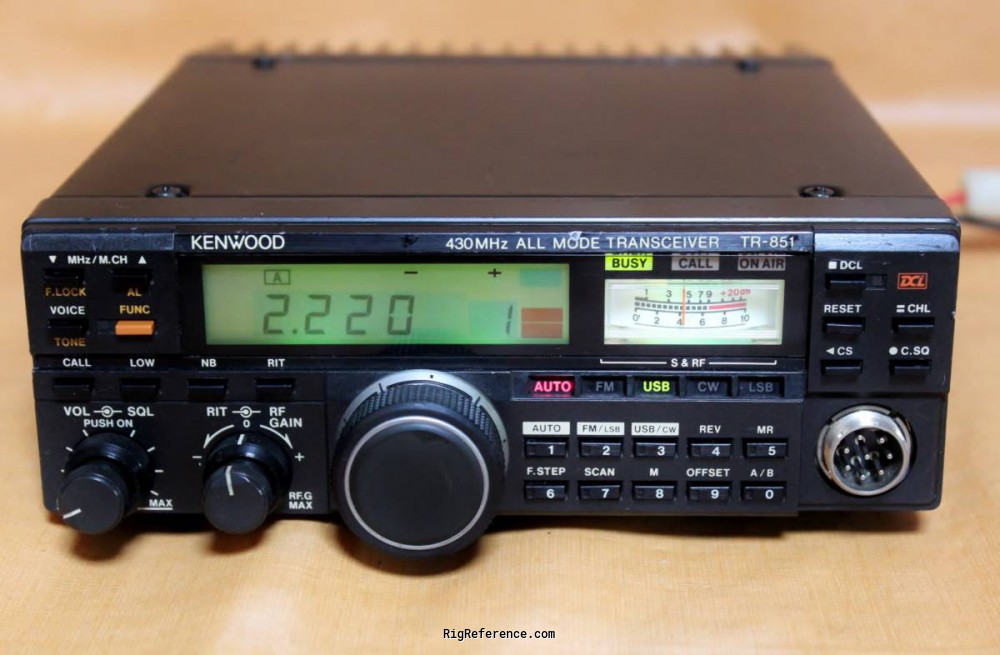

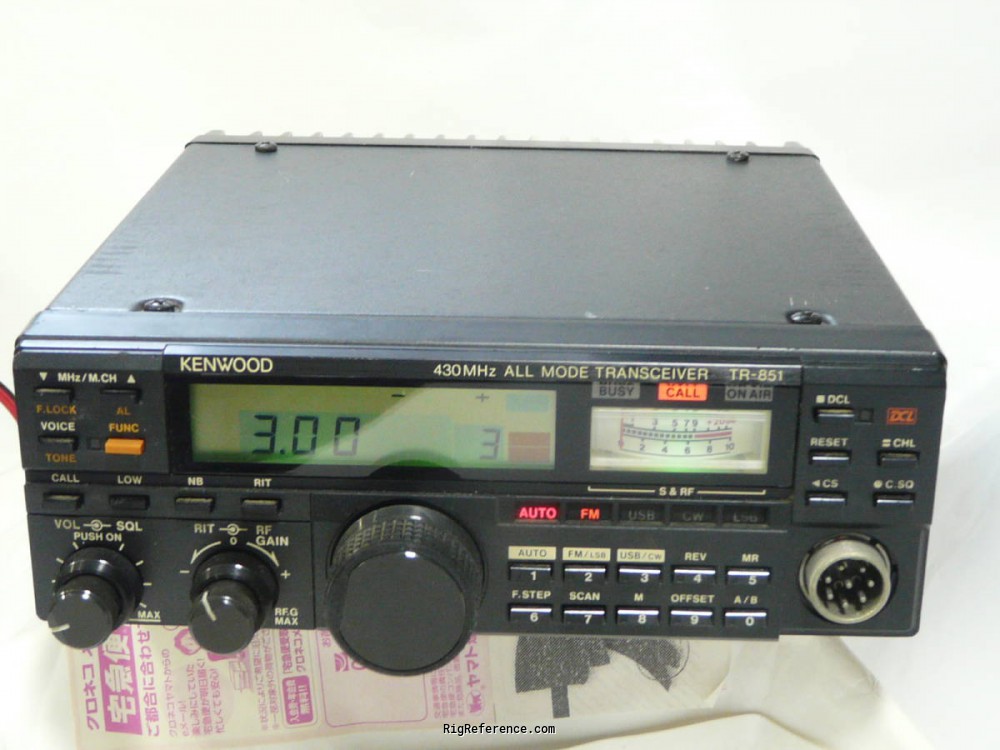

The Kenwood TR-851A is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. Image rejection is better than 60 dB. RF output is selectable between High: 25 W and Low: 5 W. It features 1 memory bank with 10 channels. Power requirements are 11-16V DC. Current drain is Max 1 A while receiving and Max 7.5 A while transmitting. Dimensions are 60 × 180 × 215 mm.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- All mode
- Sensitivity
- SSB/CW: Better than 0.11 µV (10 dB S+N/N)
FM: Better than 0.18 µV (12 dB SINAD) - Selectivity
- SSB/CW: 2.2 kHz (-6 dB), 4.8 kHz (-60 dB)
FM: 12 kHz (-6 dB), 24 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- All mode
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- Max 1 A
- TX
- Max 7.5 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 215 mm (7.09 × 2.36 × 8.46 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3468
- MPN
- KENWOOD-TR-000851A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-851A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TR-851A is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
