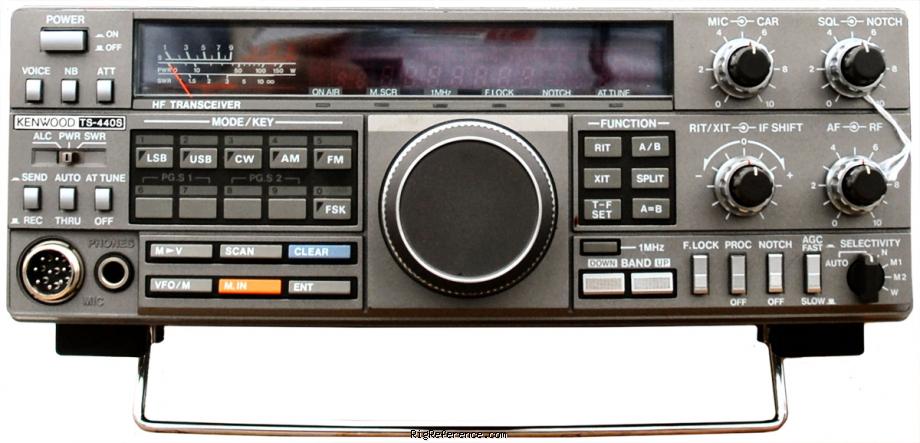

The Kenwood TS-440S is a 10-160 m + WARC transceiver. It supports AM/SSB modulations and has a maximum RF output of 100 W PEP (50 W on AM). The radio requires 12-16V DC power and features an auto-AT option. Dimensions are 96 × 270 × 313 mm. It weighs 6.3 kg, draws 1.9 A in receive mode and a maximum of 20 A in transmit mode.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.15-30 MHz
- Modulations
- AM FM CW USB LSB FSK
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW USB LSB FSK
- RF-output
- Max 100 W (AM: 50 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-16V DC
- Current drain RX
- 1.9 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 270 × 96 × 313 mm (10.63 × 3.78 × 12.32 in)
- Weight
- 6.30 kg (13.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1986 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-AT option.
- Accessories
- -
- RigReference ID
- 3483
- MPN
- KENWOOD-TS-000440S
Manuals, diagrams and brochures
- Kenwood TS-440S Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-440S User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Nice "oldtimer" | 13 years ago by benny.strom | |
| TS-440s fixer upper | 13 years ago by Dan | |
| Needs Help | 16 years ago by GI0ZGB |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-440S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-440S in Good condition is around:
- USD 300 ~ USD 443
- AUD 375 ~ AUD 422
- EUR 300 ~ EUR 463
- GBP 725 ~ GBP 1,000
These estimates are based on the following prices:
