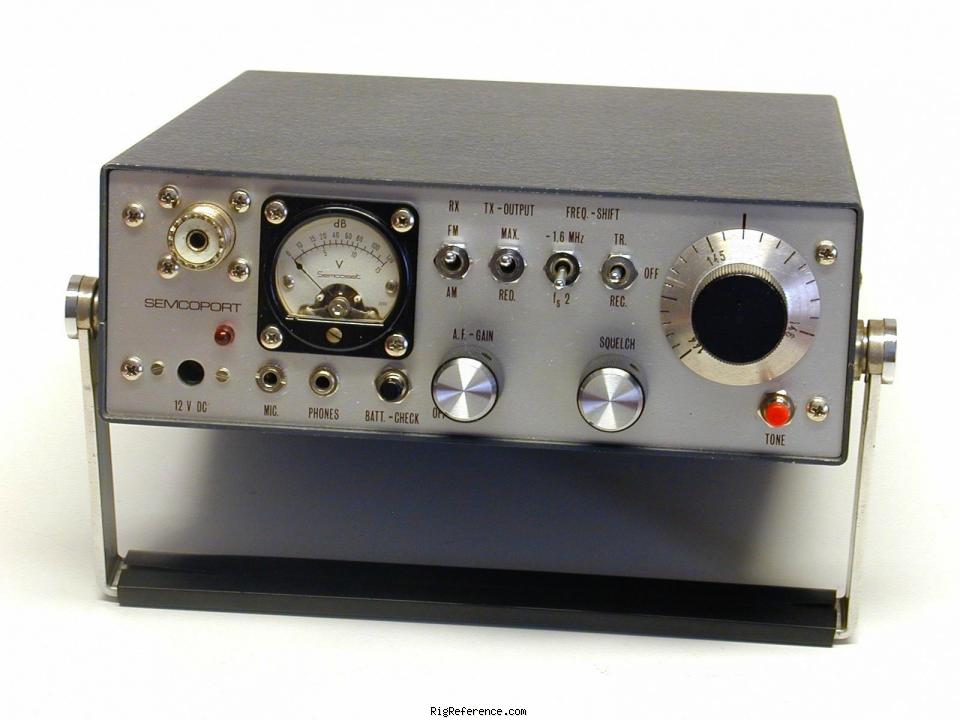

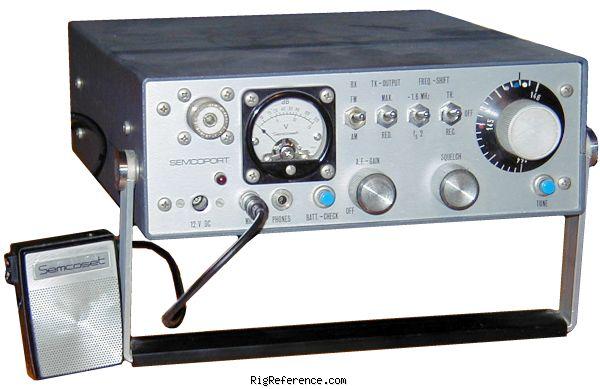

Semcoset Semcoport

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Semcoset Semcoport is a VHF transceiver. It covers 144-146 MHz for both receive and transmit. RF output is 2 W. The radio operates on 12V DC, drawing 100 mA in receive mode and a maximum of 0.5 A in transmit mode. Dimensions are 70 × 190 × 220 mm. Features include repeater offset.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 2 W

Connections

Antenna: SO-239
Impedance: 60 Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: 100 mA
TX: Max 0.5 A

Physical

Dimensions (w×h×d): 190 × 70 × 220 mm (7.48 × 2.76 × 8.66 in)
Weight: 500 gr (1.1 lbs)
Form factor: Mobile
Manufactured: Between 197x and 197x in W.Germany

Other features

Usage: Amateur / Ham radio operators
Features + options: Repeater offset
Accessories: -
RigReference ID: 3956
MPN: SEMCOSET-SEMCOPORT
