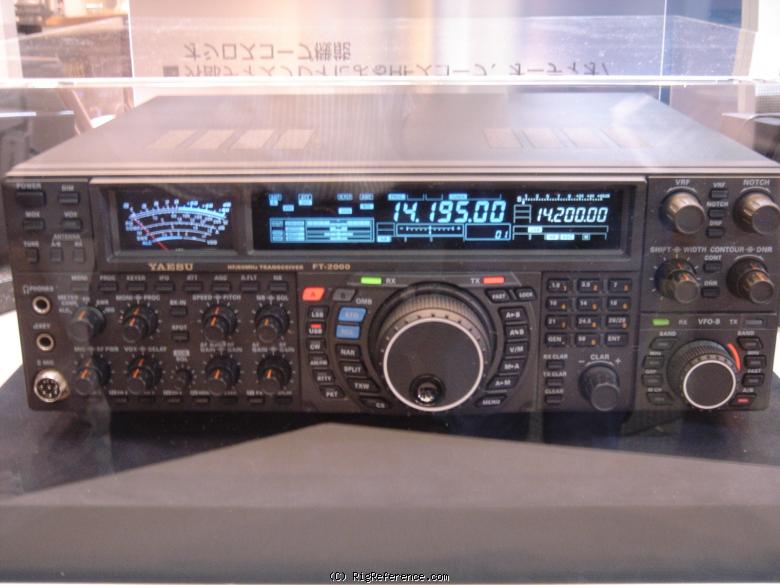

The Yaesu FT-2000 follows in the tradition of venerable FT-1000 series, and incorporates an amazing number of advanced features from the FT-9000 series. The FT-2000 provides a full 100 Watts of power output (AM: 25 W) on the 160-6 Meter Amateur bands, and the U.S. version includes a special memory bank containing the five 60-meter channels, as well. Superb continuous receive from 30 kHz to 60 MHz is provided. The receiver front-end includes VRF (Variable RF Tuning) preselector which works in conjunction with a bank of fixed bandpass filters. This provides a front-line defense against strong out of band signals. The result is improved dynamic range and a higher intercept point than other designs. The First IF roofing filters (3/6/15 kHz) increase dynamic range in crowded band conditions. Variable IF Width and IF Shift allow precise interference rejection, and the receiver DSP also includes an Auto-Notch, Manual Notch, Digital Noise Reduction, and a continuously-variable passband Contour control. The WIDTH control has a mode-determined adjustment range of 200 Hz – 4 kHz for SSB, and 25 Hz to 2.4 kHz on CW, and a mode-optimized “Narrow” key provides one-touch narrowing of the bandwidth to a user-determined preset value. You can also tailor your transmit signal. You have tremendous control over the fidelity and/or “talk power” of your SSB signal, thanks to the variable SSB bandwidth capability in the Menu. The default bandwidth is 2.4 kHz (300 – 2400 Hz @ -6 dB), but you also have selections of 50 – 3000 Hz, 100 – 2900 Hz, 200 – 2800 Hz, and 400 – 2600 Hz, allowing you to select the bandwidth best suiting your operating needs. The DMU-2000 Data Management Unit shown above is optional.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
±0.5 ppm (after 1 min. @ 25 °C)
Tuning steps
1 / 10 Hz / 0.1 kHz
Memories
?

Receiver

RX-range
0.03-60 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
SSB/CW (2 kHz): 0.2 µV
AM (6 kHz): 2 µV
FM: 0.5 µV
Selectivity
?
Filters
3/6/15 kHz
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 69.450 MHz
2nd: 450 kHz
3rd: 30 kHz
Image rejection
> 70 dB
Audio output
2.5 W into 4 Ohms with <10 % THD

Transmitter

TX-range
10-160 m + WARC / 50-54 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
5-100W (AM: 2-25 W)

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC or mains
Current drain RX
80 VA max
TX
450 VA max

Physical

Dimensions (w×h×d)
410 × 135 × 350 mm (16.14 × 5.31 × 13.78 in)
Weight
15.00 kg (33.1 lbs)
Form factor
Base Station
Manufactured
Between 2007 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
IF-DSP
RF and LF scope
High dynamic range front end
1:st IF 6 KHz and 12 KHz roofing filters.
Twin RX
Accessories
-
RigReference ID
4245
MPN
YAESU-FT-002000

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
FT-2000 13 years ago by KB2VYZ

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-2000 is around:

  • EUR 341.00 ~ EUR 201.00
  • USD 1278.00 ~ USD 19.00
  • CAD 320.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 USD 20.00 Used / Good M Mathews
2021 USD 1300.00 Used / Mint WILKEY
2010 EUR 2125.00 New / Good thiecom.de
2010 USD 1860.00 Used / Good eBay
2009 EUR 1550.00 Used / Mint S52DK
