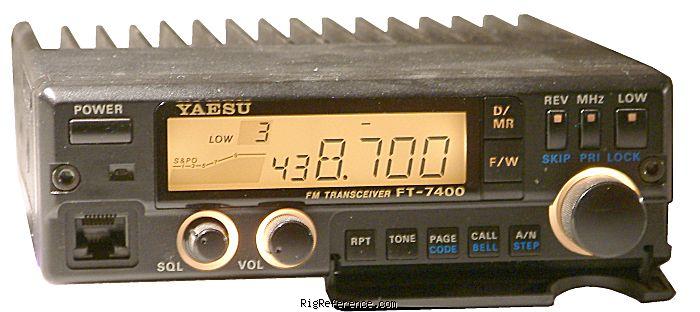

The Yaesu FT-7400H is a robustly built 70 cm mobile transceiver. The heavy heat sink allows output at 35 watts max. without a fan. Transmit is from 430-440/450 and receive is 420-470 MHz. A 38 tone CTCSS encode board is built-in. You can selectively call up channels to display by frequency or six character alphanumeric name. Five scanning methods and 31 memories are available. The Yaesu FT-2400 and FT-7400H meet the stringent MIL STD-810 rating for shock and vibration.

General characteristics

HAM bands
70cm
Frequency stability
?
Tuning steps
?
Memories
31 channels in 1 bank(s)

Receiver

RX-range
420-470 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
430-440 MHz (Europe)
430-450 MHz (USA)
Modulations
FM
RF-output
High: 35 W, Medium: 15 W, Low: 5 W

Connections

Antenna
N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
160 × 50 × 180 mm (6.30 × 1.97 × 7.09 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Mobile
Manufactured
Between 199x and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS encoder
Accessories
-
RigReference ID
4335
MPN
YAESU-FT-007400H

Manuals, diagrams and brochures

Yaesu FT-7400H User Manual PDF - 3.29 MB, submitted by Anthony Cardenas
Yaesu Ft7400 MOD JPEG - 95.6 kB, submitted by Anthony Cardenas
