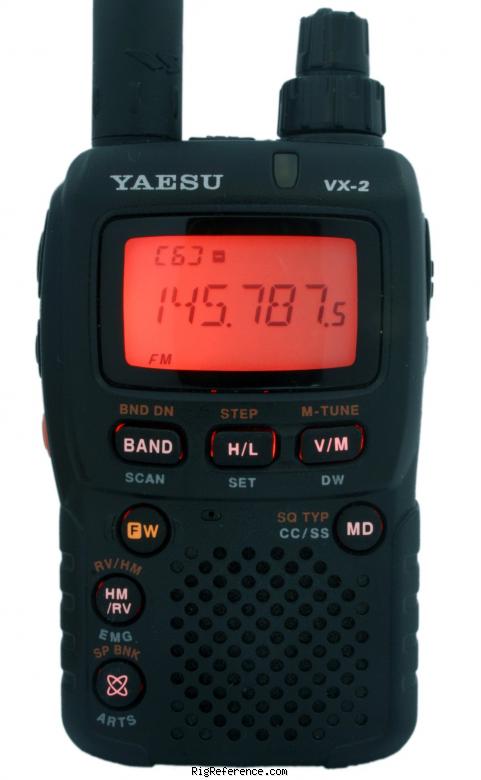

The Yaesu VX-2R is a handheld VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Europe and Asia) or 144-148 / 430-450 MHz (USA). RF output is 1.5-3 W / 1-2 W. It features CTCSS, DCS, DTMF & ARTS. Memory capacity includes 1 bank with 5000 channels. The VX-2R weighs 182 gr with battery and antenna. Dimensions are 81 × 47 × 23 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 5000 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-999 MHz (cellular blocked in the US)
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe and Asia)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- RF-output
- 1.5-3 / 1-2 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 3.2-7V DC
- Current drain RX
- 20-150 mA
- TX
- 1.2-1.8 A
Physical
- Dimensions (w×h×d)
- 47 × 81 × 23 mm (1.85 × 3.19 × 0.91 in)
- Weight
- 182 gr (6.4 oz) with battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 2003 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DCS, DTMF & ARTS.
- Accessories
- -
- RigReference ID
- 4396
- MPN
- YAESU-VX-000002R
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VX-2R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu VX-2R in Good condition is around:
- EUR 77
- USD 45
These estimates are based on the following prices:
