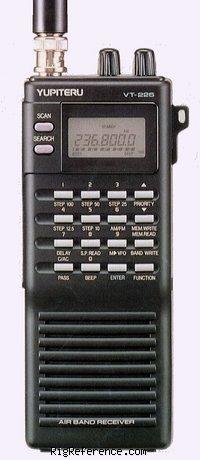

The VT-225 is slightly larger than the Yupiteru VT-125 but offers full civil and 99% of the military airband.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
10 / 12.5 / 25 / 50 / 100 kHz
Memories
100 channels in 1 bank(s)

Receiver

RX-range
108.00-142.10 / 149.50-160.00 / 220.00 - 391.00 MHz
Modulations
AM   N-FM
Sensitivity
AM & FM: 0.5V (S/N 10db)
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
100 mW

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
4.88v Internal (3 x AA nicads), 12v dc external
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
59 × 147 × 38 mm (2.32 × 5.79 × 1.50 in)
Weight
280 gr (9.9 oz)
Form factor
Handheld
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4415
MPN
YUPITERU-VT-000225

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Fabulous civil and military airband rx 8 years ago by jim.cowburn
