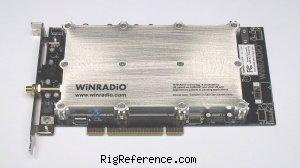

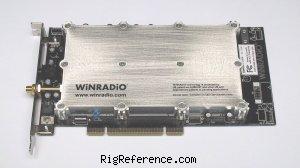

WiNRADiO WR-G313i

General characteristics

HAM bands

?

Frequency stability

0.5 ppm (0 to 60 C)

Tuning steps

1 ppm (25C 2C) kHz

Memories

?

Receiver

RX-range

9 kHz - 30 MHz (9 kHz - 180 MHz optional)

Modulations

AM   AM-sync   FM   CW   USB   LSB   DSB   ISB

Sensitivity

Mode 0.15?0.5 MHz 0.5?1.5 MHz 1.5?30 MHz
AM, AMS (30% modulation) ?103dBm
(1.6V) ?106dBm
(1.1V) ?108dBm
(0.9V)
AM, AMS (80% modulation) ?111dBm
(0.63V) ?115dBm
(0.4V) ?116dBm
(0.35V)
LSB, USB, ISB, DSB ?115dBm
(0.40V) ?118dBm
(0.28V) ?119dBm
(0.25V)
CW ?122dBm
(0.18V) ?125dBm
(0.13V) ?130dBm
(0.07V)
FM ?110dBm
(0.7V) ?113dBm
(0.5V) ?117dBm
(0.32V)

Selectivity

?

Filters

?

Receiver system

DSP-based SDR with DDS-based double-conversion superheterodyne front end

IF-frequencies

1st: 45 MHz
2nd: 16 (12-22) kHz

Image rejection

1.8-7.3 MHz: 80 dB 7.3-30 MHz: 70 dB

Audio output

600 ohm line audio

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

From PCI interface

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

195 × 99 × 19 mm (7.68 × 3.90 × 0.75 in)

Weight

330 gr (11.6 oz)

Form factor

PC-card

Manufactured

Between 200x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

DSP
Number of memory channels limited by computer memory

Accessories

-

RigReference ID

4425

MPN

WINRADIO-WR-G000313I
