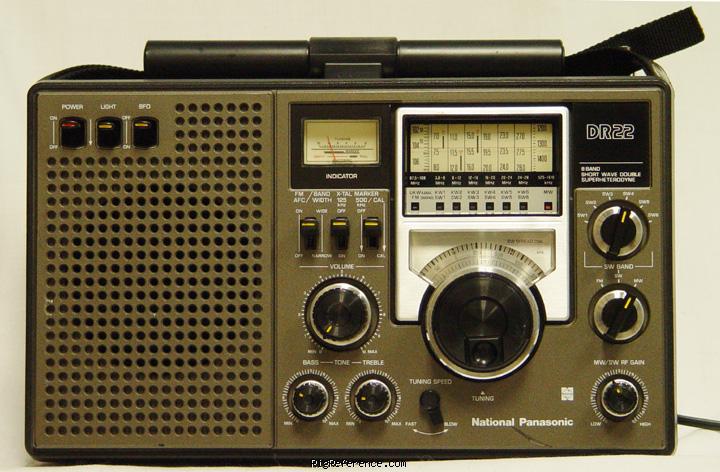

The National Panasonic DR22 (RF-2200BS) is the European version of the National / Panasonic RF-2200. Unlike the RF-2200, the DR22 features a selectable 110/220 V AC voltage input switch on the rear panel and the display is slightly different.

General characteristics

HAM bands
60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)
Frequency stability
?
Tuning steps
Continuous
Memories
?

Receiver

RX-range
0.525-1.61 / 3.9-28 / 87.5-108 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
FM: 2 µV
MW: 14 µV
SW: 0.5 µV
Selectivity
?
Filters
?
Receiver system
Double Superheterodyne
IF-frequencies
FM: 10.7 MHz
MW/SW 1st: 1.985 MHz
SW 2nd: 455 kHz
Image rejection
?
Audio output
3W max, 8 ohm

Connections

Antenna
Built-in ferrite bar + Built-in telescopic
Impedance
?
Other
-

Electrical

Power requirements
Mains or 4LR20 / D
Current drain RX
7W
TX
-

Physical

Dimensions (w×h×d)
305 × 200 × 100 mm (12.01 × 7.87 × 3.94 in)
Weight
3.40 kg (7.5 lbs) without batteries
Form factor
Portable
Manufactured
Between 1978 and 1979 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4560
MPN
NATIONAL-/-PANASONIC-DR-000022

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Excellent reciever 10 years ago by ytsahai

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used National / Panasonic DR-22. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the National / Panasonic DR-22 is around:

  • USD 250.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 255.00 Used / Okay eBay
