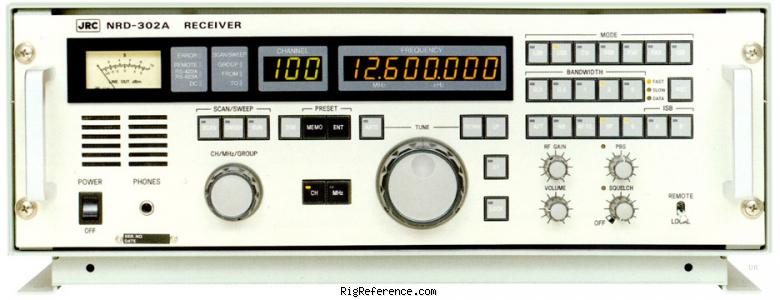

The Japan Radio Company's NRD-302A was designed in compliance with the GMDSS carriage requirements under SOLAS. Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, and FSK (RTTY) modes. ISB mode is offered as an option.

Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, DSB (AM), FSK (RTTY) and FAX modes. Supplied bandwidths include: 6, 3, 1 and 0.3 kHz (0.5 kHz optional). The built in 300 channel memory stores: frequency, mode, bandwidth, AGC and ATT data. Scan and sweep are supported. Other refinements include: AF Filter, NB, Pass Band Shift, Lock, User Defined Functions, Dimmer, Self-Test, AGC selection and front-firing built-in speaker. A built in self-test function is also featured. The AC input supply voltage is user selectable from the back panel.

The NRD-302A is designed for mounting in a standard 19 inch commercial rack.

General characteristics

HAM bands
?
Frequency stability
± 20 Hz after 1 min below 13 MHz. ± 50 Hz after 1 min > 13 MHz.
Tuning steps
1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 100 kHz
Memories
?

Receiver

RX-range
0.09-30 MHz
Modulations
AM   CW   USB   LSB   DSB   RTTY   FAX
Sensitivity
2µV SSB 1.8-30 MHz (10 dB S+N/N)
Selectivity
6.0 kHz
3.0 kHz
0.5 kHz
1.0 kHz
0.5 kHz [Optional]
0.3 kHz
Filters
?
Receiver system
Up Conversion Dual Superheterodyne
IF-frequencies
?
Image rejection
> 70 dB
Audio output
1 Watts at 8 Ohms

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
24V DC or mains
Current drain RX
36W
TX
-

Physical

Dimensions (w×h×d)
480 × 150 × 290 mm (18.90 × 5.91 × 11.42 in)
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 199x and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4569
MPN
JRC-NRD-000302A
