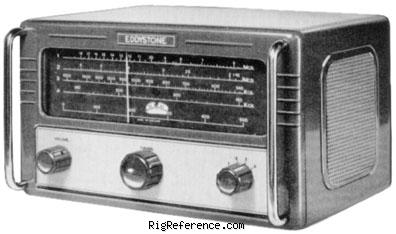

Ranges: .15-.38, .51-1.4, 1.3-3.5, 3.2-7.5 and 7.5-24 MHz. This simple receiver was designed for home or shipboard cabin use. It was also advertised as a semi-portable. It has a two toned metal cabinet.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.15-24 MHz in 5 bands
Modulations
AM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion, 5 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
279 × 162 × 208 mm (10.98 × 6.38 × 8.19 in)
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 1962 and 1963 in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5026
MPN
EDDYSTONE-000870A
