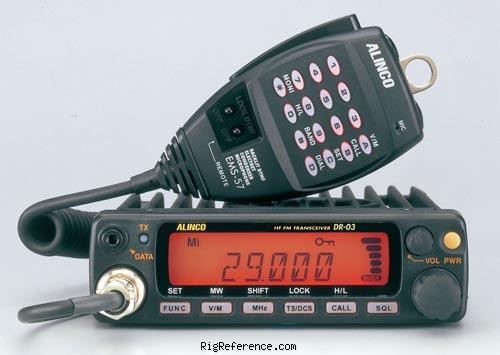

Alinco DR-03T

General characteristics

HAM bands

10m

Frequency stability

± 7 ppm

Tuning steps

5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz

Memories

100 channels in 1 bank(s)

Receiver

RX-range

28-29.695 MHz

Modulations

FM   N-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

FM: 12 kHz (-6 dB), 28 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 16 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 450 KHz

Image rejection

?

Audio output

2 W into 8 ohm at 10% THD

Transmitter

TX-range

28-29.695 MHz

Modulations

FM   N-FM

RF-output

2/5/10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

400-600 mA

TX

3 A

Physical

Dimensions (w×h×d)

142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)

Weight

1,000 gr (2.2 lbs)

Form factor

Mobile

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5131

MPN

ALINCO-DR-000003T
