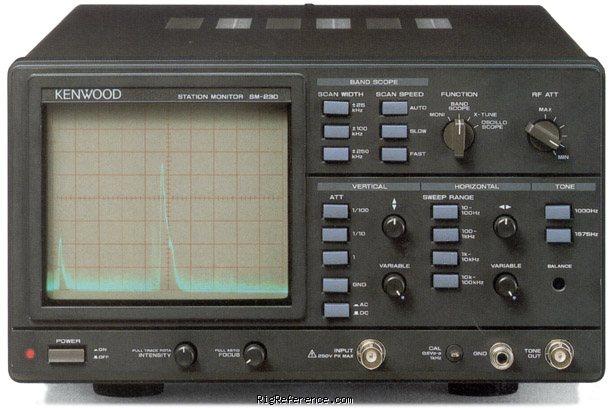

The Kenwood SM-230 Station Monitor is a multi-functional unit. It functions as a band-scope, monitor and tone generator. It is the ideal product for supporting, monitoring and calibrating equipment in radio stations.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Frequency range

Range
1.8-150 MHz

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
260 × 155 × 427 mm (10.24 × 6.10 × 16.81 in) including protrusions
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
- Bandscope ±25/100/250 kHz
- 10 MHz Oscilloscope
- Matches many Kenwood Transceivers
- Wideband Transmission Monitor
- RTTY X-Y Tuning Meter
- Built-in 1000/1575 Hz Two-Tone Generator
Accessories
-
RigReference ID
5246
MPN
KENWOOD-SM-000230
