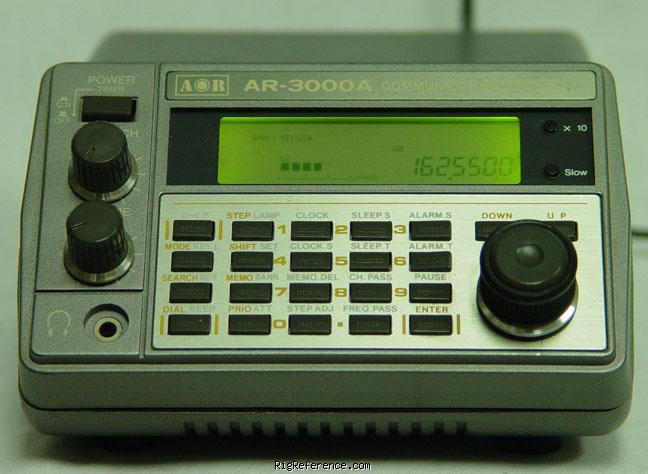

The AOR AR3000AB offers high performance and wide coverage: 100 kHz - 2036 MHz (less cellular frequencies) in FM-N, FM-W, USB, LSB, CW and AM. 400 memory channels are provided in four banks of 100 channels each. Each memory channel can store: mode, frequency, RF attenuator setting and lockout status. The first channel of each bank may also be used as a priority channel. The scan rate is 50 channels per second and search rate of 50 steps per second. The tuning rate can be as fine as 50 Hz for SSB/CW. The front panel is angled for optimum LCD viewing and keypad entry. Other features include: signal strength indicator, clock with sleep timer, tuning knob, keypad entry, record jack, attenuator and RS-232 port. The rear panel antenna input is a 50 ohm BNC.

General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
50 Hz - 1000 kHz
Memories
400 channels in 4 bank(s) @ 50 channels/second

Receiver

RX-range
0.1-2036 MHz
Modulations
AM   N-FM   W-FM   CW   USB   LSB
Sensitivity
100kHz - 2.5MHz
SSB/CW: 1.00 µV (10dB S/N)
AM: 3.20 µV (10dB S/N)
2.5MHz - 1.8GHz
SSB/CW: 0.25 µV (10dB S/N)
AM: 1.00 µV (10dB S/N)
N-FM: 0.35 µV (12dB SINAD)
W-FM: 1.00 µV (12dB SINAD)
1.8GHz - 2.0GHz
SSB/CW: 0.75 µV (10dB S/N)
AM: 3.00 µV (10dB S/N)
N-FM: 1.25 µV (12dB SINAD)
W-FM: 3.00 µV (12dB SINAD)
Selectivity
2.4 kHz/-6dB, 4.5 kHz/-60db (USB/LSB/CW)
12 kHz/-6dB, 25 kHz/-70dB (AM/N-FM)
180 kHz/-6dB, 800 kHz/-50dB (W-FM)
Filters
?
Receiver system
Triple / Quadruple (W-FM) conversion
IF-frequencies
?
Image rejection
?
Audio output
0.7 W into 8 ohm with 10% distortion

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
138 × 80 × 200 mm (5.43 × 3.15 × 7.87 in) excluding projections
Weight
1.20 kg (2.6 lbs)
Form factor
Base Station
Manufactured
Between 1989 and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
RS232 port
Accessories
-
RigReference ID
5265
MPN
AOR-AR-003000AB

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-3000AB. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-3000AB is around:

  • USD 108.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 429.95 New / Good universal-radio
